The W25Q16JVSSIQ is a highly reliable Serial Flash Memory chip widely used in electronic systems. However, like any complex component, it can encounter issues in certain conditions. This comprehensive guide provides common troubleshooting steps and solutions to help you resolve issues related to the W25Q16JVSSIQ. Whether you're working on embedded systems, microcontroller projects, or other electronics, this article will ensure your W25Q16JVSSIQ functions optimally.

W25Q16JVSSIQ, troubleshooting, solutions, Serial Flash Memory, memory chip issues, embedded systems, microcontroller, EEPROM, SPI, firmware, error codes.

Understanding the W25Q16JVSSIQ and Common Issues

Introduction to the W25Q16JVSSIQ

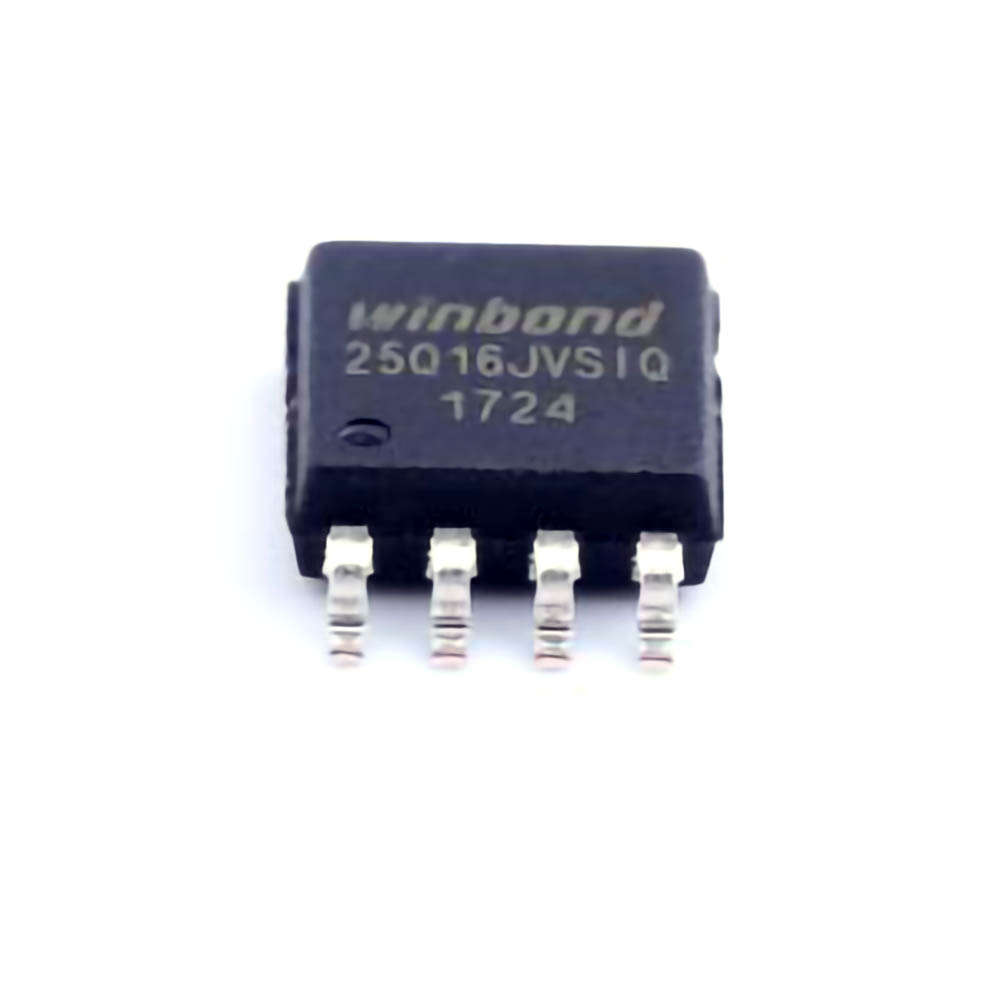

The W25Q16JVSSIQ is a 16-megabit (2M x 8) Serial Flash Memory chip from Winbond Electronics. It uses the SPI (Serial Peripheral interface ) protocol for Communication and is primarily employed in embedded systems, automotive electronics, and consumer devices. Its key features include low Power consumption, high read speeds, and significant endurance, making it ideal for use in firmware storage, system booting, and data logging.

Despite its reliability, like all electronic components, the W25Q16JVSSIQ can encounter issues during operation. Identifying and resolving these problems quickly is crucial for maintaining system stability and performance. In this section, we’ll delve into the most common issues with this flash memory chip and how to diagnose them effectively.

1. No Communication with the Chip

One of the most frequent problems users experience with the W25Q16JVSSIQ is failure to communicate with the memory chip via SPI. This can prevent the device from reading or writing data properly.

Causes:

Incorrect Wiring or Connections: Miswiring of the SPI pins is a common mistake. Double-check the MISO, MOSI, SCK, and CS lines to ensure they are connected correctly to your microcontroller or SPI master.

Improper Voltage: The W25Q16JVSSIQ operates at 3.3V, and powering it with incorrect voltage (e.g., 5V) can cause communication failure or damage the chip.

Faulty SPI Initialization: In many cases, improper configuration of SPI settings (such as Clock polarity or phase) can lead to communication issues.

Solutions:

Double-Check Pinouts: Review the datasheet and ensure that your wiring matches the SPI interface requirements.

Check Power Supply: Verify that the W25Q16JVSSIQ is receiving the correct supply voltage of 3.3V. If your system operates at a different voltage, use level shifters to match the voltage levels.

SPI Configuration: Verify the correct SPI settings in your firmware, including clock polarity (CPOL), clock phase (CPHA), and data order. Typically, the W25Q16JVSSIQ works with CPOL = 0 and CPHA = 0.

2. Read/Write Failures or Corruption

Another common issue is data corruption or failed read/write operations. Users might find that after writing data to the flash memory, the values are not correctly read back or get corrupted.

Causes:

Timing Issues: The W25Q16JVSSIQ has certain read/write cycles and access timings that need to be respected. Violating these timing requirements can result in incorrect data transfer.

Inadequate Erasure: Before writing new data, the memory should be erased or set to an appropriate state. Writing data to un-erased pages may cause inconsistent results.

Firmware Bugs: Incorrect handling of the write enable command, write status register, or page/program commands could cause writes to fail or become corrupted.

Solutions:

Respect Timing Parameters: Always consult the datasheet for the correct timing diagrams and ensure your SPI controller adheres to these constraints. For example, ensure that the write enable and write status register commands are correctly issued before any write operation.

Proper Erasure: Use the sector erase or chip erase commands as necessary to clear data before writing. Attempting to write to a non-erased sector can lead to corruption or incomplete writes.

Debug the Firmware: Review your firmware carefully to ensure that write operations are correctly initiated and that the chip is in the right state. Check the SPI signals with an oscilloscope to ensure no signal integrity issues are present.

3. Inconsistent or Sluggish Performance

In some cases, users might observe sluggish performance or inconsistent data retrieval from the W25Q16JVSSIQ, which can be caused by several factors.

Causes:

SPI Clock Speed: If the SPI clock speed is set too high, it can result in communication errors, especially if the wiring or microcontroller cannot support the required frequency.

Power Supply Fluctuations: Inconsistent power delivery can affect the chip’s read/write performance. If the chip is not receiving a stable 3.3V, its performance can degrade.

Excessive Wear on Flash Cells: Flash memory has a limited number of write/erase cycles. If the chip has been used excessively without wear leveling or proper Management , it may begin to slow down or experience performance degradation.

Solutions:

Adjust SPI Clock Speed: Lower the SPI clock speed to a value that is stable for both your microcontroller and the W25Q16JVSSIQ. Generally, 20 MHz or lower is safe for most systems.

Check Power Supply: Ensure that your power supply provides a clean and stable 3.3V voltage to the chip. Use capacitor s for decoupling to smooth out any fluctuations.

Manage Flash Wear: If you're using the flash memory extensively, consider implementing a wear leveling algorithm or use other management techniques to prevent excessive wear on specific areas of the memory.

4. Incorrect or Missing Data After Power Cycle

After a power cycle (reset or shutdown), some users find that the data in the W25Q16JVSSIQ is missing or incorrect.

Causes:

Incorrect Use of the Power-down Pin: The W25Q16JVSSIQ has a power-down pin that can be used to put the chip into a low-power state. If not properly managed, this could lead to issues when the chip is powered up again.

Write Protection Enabled: The write protection feature might be enabled, preventing data from being written to the memory. This could lead to inconsistent or missing data.

Solutions:

Manage Power-down Pin: Ensure that the power-down pin is not inadvertently held low during power-up, which would disable the chip. Properly configure your firmware to control this pin based on your power management needs.

Disable Write Protection: Check the status register and ensure that write protection is disabled before attempting to write or read data after a power cycle.

Advanced Troubleshooting and Long-Term Solutions for the W25Q16JVSSIQ

5. Overheating and Physical Damage

Occasionally, users may encounter physical damage to the W25Q16JVSSIQ, which can manifest as overheating or complete failure to operate.

Causes:

Excessive Current Draw: If the chip is subjected to conditions that cause it to draw more current than expected (for example, a short circuit or insufficient voltage supply), it may overheat.

Improper Mounting: Incorrect handling or improper mounting of the chip on a PCB can cause thermal stress, which could damage the chip.

Environmental Conditions: High temperatures or humidity levels beyond the recommended operating conditions can lead to failure over time.

Solutions:

Monitor Power Consumption: Use a multimeter to check the current drawn by the W25Q16JVSSIQ and ensure that it is within expected limits. If the current is abnormally high, investigate potential short circuits or power supply issues.

Proper Soldering and Mounting: Ensure that the W25Q16JVSSIQ is properly soldered and mounted on the PCB with adequate heat dissipation. Using thermal vias or heatsinks may help reduce temperature buildup.

Environmental Monitoring: Make sure that the chip is operated within the specified temperature range (typically -40°C to 85°C for the W25Q16JVSSIQ). Implement proper thermal management strategies, especially in high-temperature environments.

6. Data Integrity Issues (Advanced Recovery)

Data integrity issues can sometimes arise even with properly configured systems. In cases where your W25Q16JVSSIQ exhibits persistent data corruption, advanced recovery methods may be necessary.

Causes:

Electrical Noise: External electrical interference or EMI (Electromagnetic Interference) can lead to unexpected data corruption, especially in noisy environments.

Firmware Bugs or Bugs in Flash Management: Certain firmware issues, such as improper handling of the read/write operations or incorrect implementation of the flash management algorithms, could lead to long-term data corruption.

Solutions:

Implement ECC (Error Correction Code): For critical applications, consider using Error Correction Code to detect and correct any data corruption that may occur.

Isolation and Shielding: If operating in an environment with significant EMI, use shielded enclosures for your electronics or add capacitors and filters to mitigate the noise.

Software Recovery: If data corruption occurs, try to reinitialize the memory and perform a full chip erase followed by reprogramming the data. For highly critical systems, consider implementing a robust backup and restore procedure for flash memory.

7. Upgrading Firmware and Compatibility

Firmware upgrades are essential to address new features, bug fixes, and compatibility improvements. However, upgrading firmware can also bring its own set of challenges.

Causes:

Incompatible Firmware Versions: If the new firmware is not compatible with the existing memory configuration, it can cause boot failures or memory read/write issues.

Incorrect Flash Programming: If the firmware update process is not executed properly, the chip might not be programmed correctly.

Solutions:

Check Firmware Compatibility: Before upgrading, review the release notes and ensure that your W25Q16JVSSIQ is supported by the new firmware version.

Use Verified Tools for Programming: Ensure that you're using verified programming tools and follow the upgrade procedure carefully to avoid bricking the chip.

Conclusion

The W25Q16JVSSIQ is a robust and versatile flash memory chip widely used in many applications. While it is generally reliable, issues such as communication failures, data corruption, and performance degradation can arise. By understanding the common causes of these issues and applying the solutions outlined in this guide, you can quickly troubleshoot and restore optimal functionality to your W25Q16JVSSIQ. Always ensure proper wiring, voltage levels, and firmware management to prevent problems from occurring.
