Common Issues with LM63625DQPWPRQ1

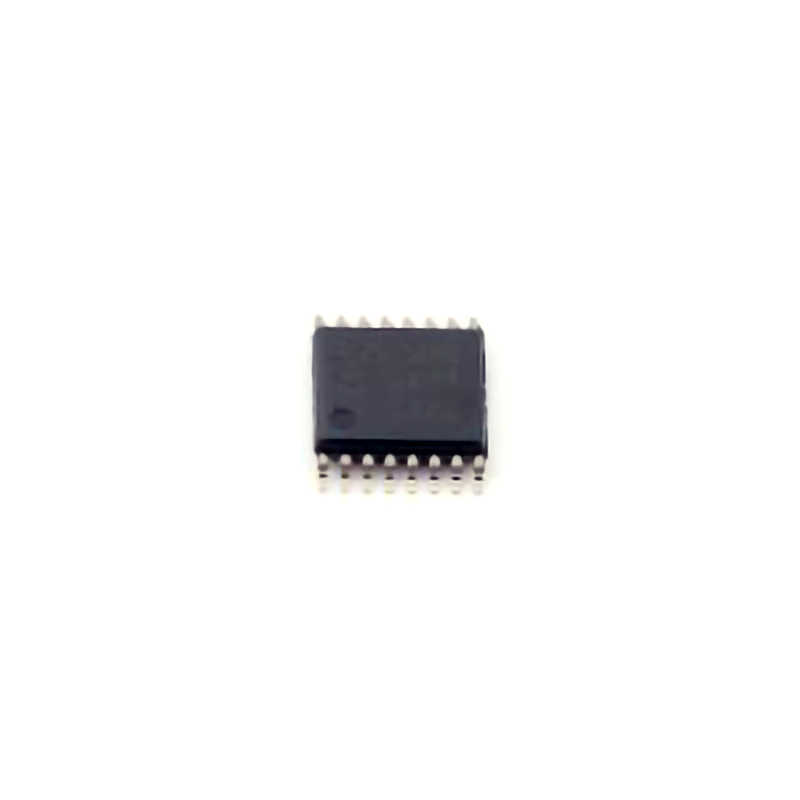

The LM63625DQPWPRQ1 is a versatile Power management IC widely used in automotive, industrial, and consumer applications. It is known for its high efficiency and ability to provide stable voltage regulation across a range of input and load conditions. However, like all complex integrated circuits, users may encounter issues during deployment or operation.

Understanding the most common problems users face with the LM63625DQPWPRQ1 and how to troubleshoot them can significantly reduce downtime and improve system reliability. In this first part, we’ll explore some of the most frequent challenges and the first steps you should take to address them.

1. Overheating and Thermal Shutdown

Overheating is a typical issue faced by users of the LM63625DQPWPRQ1, especially when it is required to handle higher currents. While the IC features thermal shutdown protection, excessive heat can result in poor performance or total failure.

Troubleshooting Tips:

Check Load Requirements: Ensure that the load current does not exceed the IC's specified limits. The LM63625DQPWPRQ1 can handle up to 2A, but pushing it beyond that can cause heat buildup.

Improve Heat Dissipation: Adequate heat sinking or PCB layout improvements can help manage thermal stress. Increasing the PCB area around the IC, using copper pours, and adding thermal vias to the ground plane are essential steps in enhancing heat dissipation.

Ambient Temperature: Consider the environment where the IC is operating. High ambient temperatures can exacerbate the heating issue. Using the IC in environments with adequate airflow or adding a heatsink can help mitigate the issue.

2. Instability or Unstable Output Voltage

Another common problem is voltage instability, where the output voltage of the LM63625DQPWPRQ1 fluctuates or fails to stay within the expected range. This can be due to a variety of factors, including poor input power quality, faulty external components, or incorrect feedback design.

Troubleshooting Tips:

Check Input Voltage: Verify that the input voltage is within the recommended range for the LM63625DQPWPRQ1. If the input voltage drops below the minimum required voltage (typically 4.5V), the IC might not be able to maintain stable output.

Inspect External Components: The stability of the LM63625DQPWPRQ1 is heavily dependent on the correct selection of external components like capacitor s, resistors, and inductors. Ensure that the recommended input and output Capacitors are installed and of the correct value.

Feedback Loop Analysis: Instability in the output voltage could be caused by a problem with the feedback loop, which is crucial for maintaining the correct output. Ensure the feedback resistors are within tolerance and that no short circuits or excessive noise are affecting the feedback signal.

3. Inadequate Input Capacitor or Capacitor Selection

Capacitors play an important role in filtering noise and stabilizing the power supply input. If the input capacitor is inadequate or wrongly selected, the LM63625DQPWPRQ1 may experience performance degradation, including input ripple and reduced efficiency.

Troubleshooting Tips:

Capacitor Value: The input capacitor is typically a 22µF ceramic type, but it's essential to refer to the datasheet for precise recommendations based on your application. A capacitor with low equivalent series resistance (ESR) is recommended for high-frequency applications.

Check for Faulty Capacitors: Capacitors can degrade over time or be damaged due to excessive voltage or temperature. Ensure that the capacitors are not failing or exhibiting high ESR, as this could affect the IC’s performance.

4. Excessive Ripple or Noise on the Output

Excessive ripple or noise on the output of the LM63625DQPWPRQ1 can be a result of either poor filtering or design issues in the surrounding circuit. Ripple can cause instability and interfere with the operation of sensitive downstream components.

Troubleshooting Tips:

Use Decoupling Capacitors: A good quality 100nF ceramic capacitor should be placed close to the output pin to help filter out high-frequency noise. This capacitor should have low ESR for optimal performance.

Increase Output Capacitance: If noise is still an issue, you may need to increase the output capacitance. A higher value output capacitor can help reduce ripple, although care must be taken not to exceed the recommended value specified in the datasheet.

PCB Layout: Poor PCB layout can contribute to noise problems. Ensure that the ground plane is solid, and traces for high-current paths are short and thick to minimize inductance.

5. Overcurrent Protection Triggering Prematurely

The LM63625DQPWPRQ1 is equipped with built-in overcurrent protection, which will shut down the device if the current exceeds a certain threshold. While this is a useful feature to prevent damage, sometimes the protection may trigger prematurely, even under normal operating conditions.

Troubleshooting Tips:

Examine Load Conditions: Double-check the current consumption of the load. If the load draws a surge current when powered on, it might trip the overcurrent protection. Adding a soft-start circuit or using an inrush current limiter could help mitigate this problem.

Verify Compensation Network: The overcurrent protection could also be triggered by an issue with the feedback loop, which affects the compensation network. Ensure that the feedback loop is properly configured to allow for stable operation under varying load conditions.

Advanced Troubleshooting and Solutions for the LM63625DQPWPRQ1

While the LM63625DQPWPRQ1 is generally a reliable component, there are some advanced troubleshooting techniques and solutions that can be employed when basic checks do not resolve the issue. This part of the article dives deeper into addressing less common but more complex issues and how to solve them.

6. Output Voltage Low or Not Reaching Desired Level

If the output voltage of the LM63625DQPWPRQ1 is lower than expected or does not reach the desired level, several factors could be contributing to this issue.

Troubleshooting Tips:

Check the Feedback Resistor Divider: The output voltage is set by the feedback resistor network. If these resistors are improperly selected or damaged, the output voltage will be incorrect. Double-check the resistor values and their placement in the circuit.

Verify the Power Supply: Insufficient input voltage can prevent the IC from reaching the desired output voltage. Ensure that the input voltage is sufficient, especially considering the dropout voltage of the regulator under load conditions.

Load Conditions: High load currents can sometimes pull down the output voltage, especially if the regulator is not properly designed to handle such loads. Ensure that the output capacitors are rated for high current loads, and the PCB traces are wide enough to handle the current.

7. Incorrect Switching Frequency

The LM63625DQPWPRQ1 operates at a fixed switching frequency, which can affect the overall efficiency and stability of the system. If there is a mismatch between the designed frequency and the actual frequency, this can result in higher noise levels, reduced efficiency, or even malfunctioning.

Troubleshooting Tips:

Check the Compensation Network: If the IC is not oscillating at the correct frequency, the issue may lie in the compensation network or external components that influence the switching characteristics. Ensure that all components are within their tolerances and properly selected.

Thermal Issues: High temperatures can affect the switching performance of the IC. Verify that the IC is not overheating, as excessive temperature can shift the operating frequency and result in instability.

8. Startup Delay or Failure to Start

Sometimes the LM63625DQPWPRQ1 might fail to start, or experience a delay during power-up. This can be caused by several factors, including issues with the soft-start mechanism, external components, or insufficient input voltage.

Troubleshooting Tips:

Soft-Start Capacitor: The LM63625DQPWPRQ1 includes a soft-start feature to reduce inrush current. If the soft-start capacitor is too large or too small, the IC may either fail to start or take longer than expected to power up. Ensure that the capacitor is within the recommended range.

Input Voltage: Double-check that the input voltage meets the minimum requirements for startup. If the input voltage is too low, the regulator will not begin functioning as intended.

Check for Faults in the Power-up Sequence: Verify that no components in the power-up sequence are preventing the IC from starting. This includes checking any enable pins, external resistors, or capacitors that could be affecting the startup process.

9. Faulty Components and Poor Soldering

Issues with the LM63625DQPWPRQ1 can sometimes be traced back to faulty external components or poor soldering quality. This is particularly common when the IC is part of a larger, complex circuit.

Troubleshooting Tips:

Inspect Soldering: Use a magnifying glass or microscope to inspect the solder joints. Cold solder joints, bridges, or broken connections can lead to intermittent or non-functional circuits.

Test External Components: Sometimes the problem lies with the passive components around the IC. Use a multimeter or oscilloscope to check the integrity of resistors, capacitors, and inductors connected to the IC.

10. Final Design Review and Simulation

Once all basic and advanced troubleshooting methods have been exhausted, it is crucial to go back to the design stage. A simulation of the power management system or a final design review can often highlight potential issues before they manifest in the physical product.

Troubleshooting Tips:

Use Simulation Tools: Run simulations with software tools like LTspice or PSpice to analyze the system’s behavior under different conditions. This can help identify design flaws or issues that are not apparent through physical testing alone.

Consult the Datasheet: Always revisit the datasheet for detailed application guidelines. The LM63625DQPWPRQ1’s datasheet contains crucial information about pin configurations, recommended component values, and system-level design tips that can resolve hidden issues.

By following these troubleshooting steps and solutions, users can resolve common issues with the LM63625DQPWPRQ1 and ensure the efficient, reliable performance of their power management systems. Understanding the root causes of problems and taking a systematic approach to fixing them will help optimize the performance and longevity of this powerful IC.
