The LM358D R2G operational amplifier is widely used in a variety of electronics projects due to its versatility and reliability. However, like any component, it can experience issues that hinder its performance. This article will explore common troubleshooting techniques and solutions for the LM358DR 2G, helping engineers and hobbyists maintain optimal functionality in their projects.

LM358 DR2G troubleshooting, LM358DR2G solutions, operational amplifier, LM358 issues, op-amp troubleshooting, LM358 DR2G application, electronics troubleshooting, LM358DR2G problems

Understanding the LM358DR2G and Common Troubleshooting Scenarios

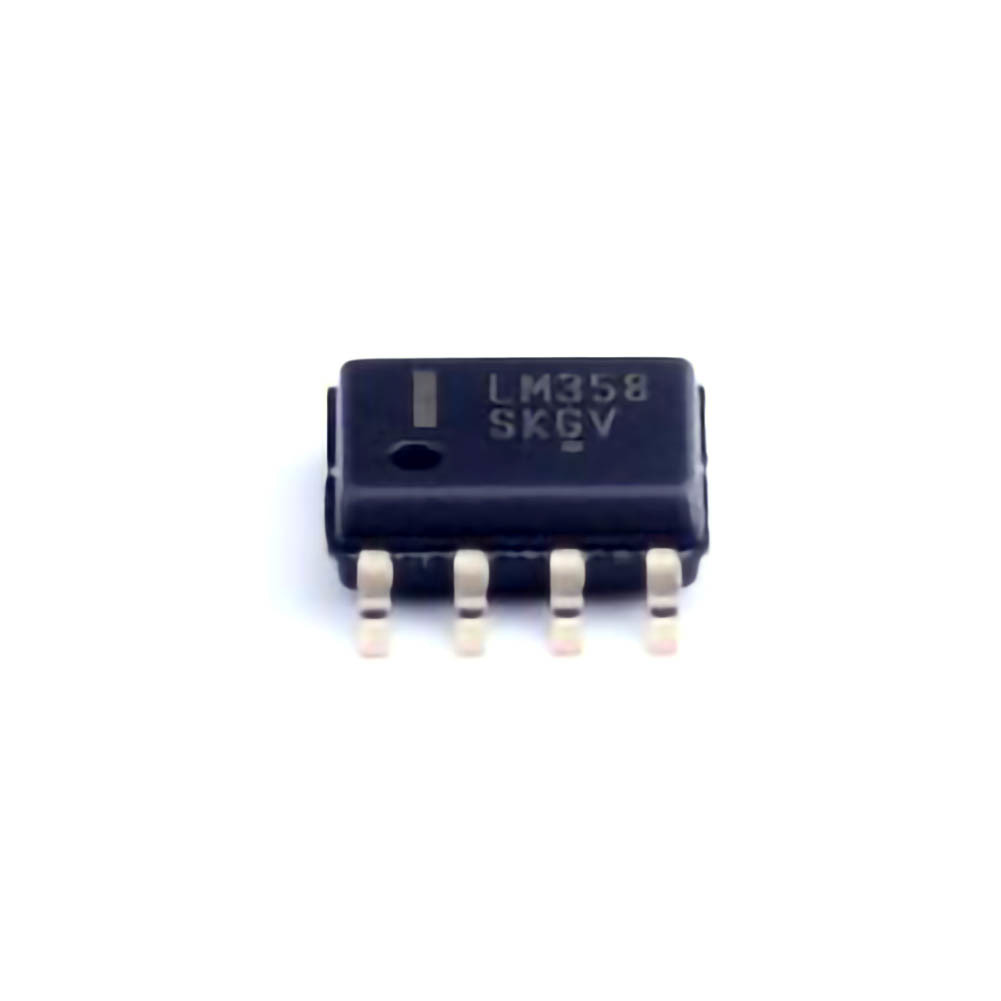

The LM358DR2G is a dual low- Power operational amplifier (op-amp) widely used in various analog applications such as voltage followers, amplifiers, comparator s, and signal conditioning circuits. Its combination of low power consumption, reliability, and versatility makes it a favorite choice for both professional engineers and hobbyists. However, like any electronic component, the LM358DR2G can encounter performance issues. Troubleshooting these issues effectively requires understanding the common problems that may arise in both its design and application.

1. Power Supply Issues

One of the most common sources of problems in any op-amp circuit is the power supply. Since the LM358DR2G is a dual op-amp, it requires a stable and correctly configured power supply to function properly. Inappropriate power supply voltages, noise, or unstable power sources can cause issues such as output clipping, distortion, or erratic behavior.

Common Symptoms of Power Supply Issues:

No output signal: If the op-amp isn't receiving proper power, there may be no output.

Output saturation or clipping: If the supply voltage is too low or unstable, the op-amp might not operate within its proper output range.

Overheating: If there’s a short circuit or excessive load, it may cause the op-amp to overheat.

Solution:

Check the power rails: Verify that both V+ and V- supply voltages are within the specified range for the LM358DR2G. Typically, this is between 3V and 32V for a single supply or ±1.5V to ±16V for dual supplies.

Use decoupling capacitor s: Place decoupling capacitors (typically 0.1µF and 10µF) close to the power pins of the LM358DR2G to reduce noise and provide stability.

Ensure the correct polarity: Double-check the connections to ensure that the power supply is connected with the correct polarity.

2. Incorrect Wiring or Connections

The LM358DR2G is an integrated dual op-amp chip, meaning that it contains two amplifiers in one package. If you're not careful with the pin configuration, you might end up connecting the wrong pins together, which could result in a malfunction.

Common Symptoms of Incorrect Wiring:

Unexpected output behavior: For example, an op-amp configured as a voltage follower may show unexpected output voltages.

No response to input signals: If the input signal is connected incorrectly, the op-amp may not process it correctly.

Oscillations or instability: Incorrect connections might cause the op-amp to oscillate or behave erratically.

Solution:

Verify pinout: Always double-check the datasheet for the exact pinout of the LM358DR2G before making connections. For the LM358, Pin 1 and Pin 8 are the op-amp’s supply pins, while Pins 2, 3, 5, and 6 correspond to the inputs and outputs.

Ensure proper feedback network: In most op-amp circuits, the feedback network (resistors or capacitors) is crucial to proper operation. Make sure the feedback loop is designed correctly, and no feedback path is left disconnected.

3. Excessive Load or Improper Impedance Matching

The LM358DR2G, like many operational amplifiers, has limitations on the amount of current it can drive. If the load is too low in impedance, the op-amp may fail to output the expected voltage and may even become damaged over time.

Common Symptoms of Load Issues:

Distorted or incorrect output: The output may be weak or distorted if the load impedance is too low.

Overheating: Drawing too much current from the op-amp can cause it to overheat and potentially fail.

Solution:

Check load impedance: Ensure that the load connected to the op-amp’s output is within the recommended range. The LM358DR2G typically drives loads of 10kΩ or higher without issues, but lower impedance might cause problems.

Use a buffer stage: If the load requires more current than the op-amp can supply, use a transistor or a dedicated output driver to buffer the op-amp’s output.

Advanced Troubleshooting and Best Practices for Using the LM358DR2G

While basic troubleshooting such as checking the power supply and verifying connections are the first steps, more complex problems can arise with the LM358DR2G, particularly in high-frequency or precision applications. Understanding the more advanced troubleshooting techniques and best practices can help users resolve persistent issues and optimize the performance of the LM358DR2G in their circuits.

1. Oscillation and Instability

Operational amplifiers like the LM358DR2G are susceptible to oscillations, especially when used in high-gain configurations or when driving capacitive loads. These oscillations are unwanted high-frequency signals that can distort the output, reducing the effectiveness of your circuit.

Common Symptoms of Oscillation:

High-frequency noise: If the op-amp is oscillating, you may see high-frequency signals superimposed on the expected output.

Erratic output behavior: If the op-amp is oscillating, the output may switch between high and low values unpredictably.

Increased power consumption: Oscillations can increase power draw from the op-amp, causing it to heat up.

Solution:

Add compensation capacitors: Adding a small capacitor (typically in the range of 10pF to 100pF) between the output and the inverting input can help to stabilize the op-amp and reduce oscillations.

Use a low-pass filter: If oscillations persist, consider adding a low-pass filter to the output to smooth out high-frequency noise.

2. Input Bias Current and Offset Voltage

The LM358DR2G, like all op-amps, has a small input bias current and offset voltage that can affect the performance, especially in high-precision applications. These characteristics can result in minor errors in the output signal, particularly when working with very small signals or in applications requiring high accuracy.

Common Symptoms of Bias and Offset Issues:

Inaccurate output voltage: If the input bias current or offset voltage is significant, you may notice a discrepancy between the expected and actual output.

Drifting output: Over time, if the offset is not compensated for, the output may drift, especially in voltage follower circuits or integrators.

Solution:

Use offset adjustment: Some designs use a potentiometer to adjust the offset voltage of the op-amp. While the LM358DR2G doesn’t have internal offset adjustment, external circuitry can be added to nullify the offset.

Select precision resistors: In critical applications, selecting precision resistors with low temperature coefficients can help minimize drift due to input bias current.

Use a chopper-stabilized op-amp: For extremely low offset and drift requirements, consider using a more precision-oriented op-amp, such as a chopper-stabilized op-amp.

3. Protecting the LM358DR2G from Damage

Although the LM358DR2G is a robust component, it can still be damaged if subjected to conditions outside of its specified limits. Exceeding the voltage or current ratings, or making improper connections, can lead to permanent damage.

Common Symptoms of Damage:

Permanent loss of output: The op-amp may no longer output any signal, even if the power supply is functional.

Excessive heat generation: A damaged op-amp will often overheat, which could be noticed as excessive warmth on the IC.

Erratic behavior: A damaged IC may exhibit strange or unpredictable output signals.

Solution:

Use protection diodes: Protect the inputs and outputs with diodes to clamp excessive voltages to a safe level.

Adhere to voltage limits: Ensure that the op-amp is operating within the specified supply voltage range. For the LM358DR2G, avoid exceeding ±18V or 32V single supply.

Verify connections before powering up: Double-check all wiring before powering on to prevent accidental shorts or incorrect connections that could damage the op-amp.

In conclusion, the LM358DR2G is a versatile and widely used op-amp, but like any component, it requires careful handling and appropriate circuit design. By understanding and troubleshooting common issues such as power supply problems, wiring errors, excessive load, and oscillations, users can ensure that their circuits operate efficiently and effectively. With proper precautions and solutions in place, the LM358DR2G can be a reliable cornerstone in many electronic applications.
