In modern Power circuits, efficient switching is the cornerstone of reliable pe RF ormance and energy conservation. The IRF530 power MOSFET is a versatile component that plays a crucial role in optimizing power circuit design, providing enhanced control, reduced heat dissipation, and improved power efficiency. This article explores how the IRF530 MOSFET can be effectively integrated into power circuit applications for various uses, including power switching and control.

IRF530, Power MOSFET, Power Circuit, Switch Control, Power Efficiency, Energy Conservation, Switching Power Supply, High-Voltage MOSFET, Electronics, Circuit Design.

Understanding the Role of IRF530 in Power Circuits

Power circuits are the backbone of modern electrical systems, enabling energy conversion, regulation, and distribution for countless applications. The IRF530 power MOSFET has emerged as a popular component in these systems due to its ability to handle high voltage and current, making it an ideal choice for switching applications. This section will delve into the characteristics and capabilities of the IRF530 and its role in enhancing power circuit performance.

What is the IRF530 Power MOSFET?

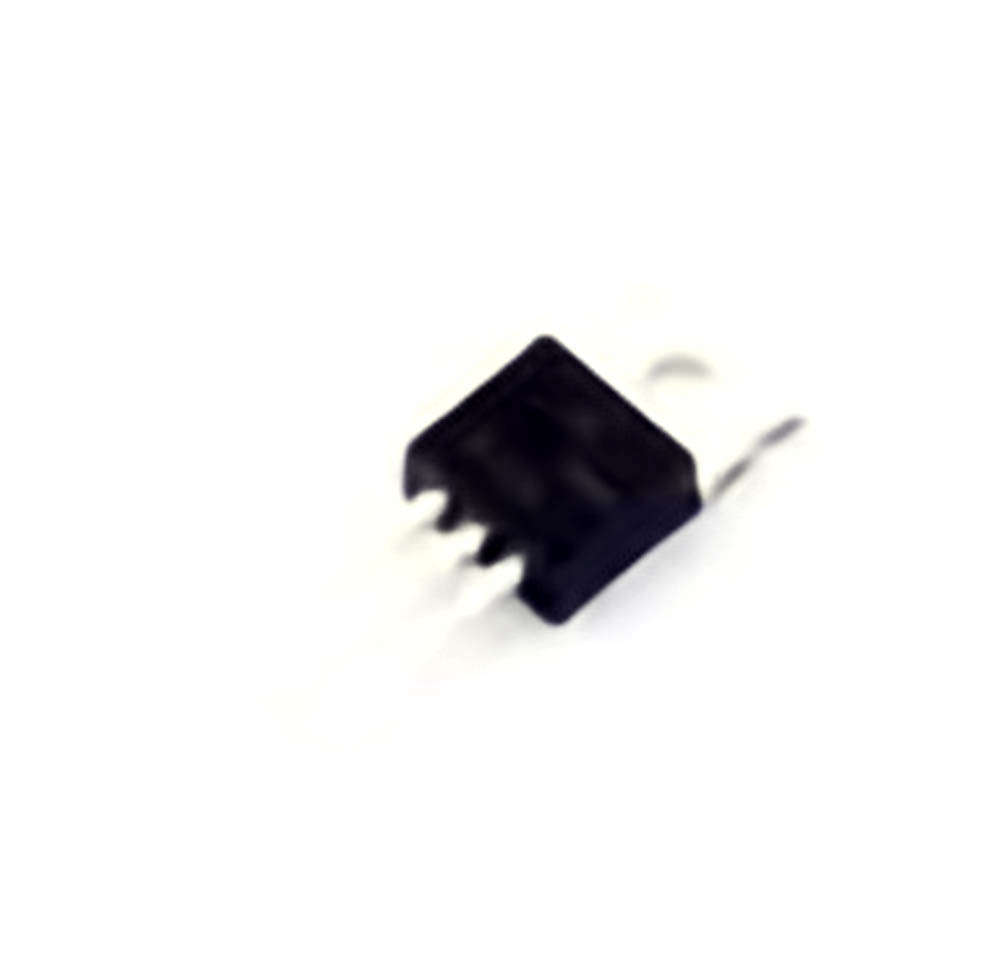

The IRF530 is a high-voltage, N-channel power MOSFET designed for use in power switching applications. With its impressive voltage rating of 100V and current handling capacity of up to 14A, the IRF530 is capable of switching large loads with minimal power loss. This characteristic makes it an excellent choice for high-efficiency power systems that demand reliable, fast switching.

Unlike traditional bipolar junction transistor s (BJTs), MOSFETs like the IRF530 operate using voltage instead of current to control their conductivity. This feature results in a much higher input impedance and reduced power dissipation, leading to improved efficiency and lower thermal stress on the circuit.

Key Features of the IRF530

High Voltage and Current Ratings:

The IRF530's 100V drain-to-source voltage rating and up to 14A continuous drain current make it ideal for a wide range of applications, from power supplies to motor drivers. This high voltage tolerance ensures that the MOSFET can handle demanding switching tasks without failure.

Low On- Resistance (Rds(on)):

A low on-resistance is a key attribute of the IRF530, which directly contributes to lower conduction losses. The MOSFET’s on-resistance is typically in the milliohm range, which means that it has a minimal voltage drop when it is in the "on" state. This is critical for improving overall circuit efficiency, especially in high-current applications.

Fast Switching:

The IRF530 offers fast switching times, which is essential in high-speed applications where low-latency switching is required. Faster switching reduces the occurrence of power loss during transitions between on and off states.

Thermal Management :

With its ability to dissipate heat efficiently, the IRF530 can operate at higher power levels without significant thermal stress. This property helps to maintain stable performance even in demanding environments.

Gate Control:

As an N-channel MOSFET, the IRF530 is controlled via its gate terminal. When a positive voltage is applied to the gate, the MOSFET conducts, creating a path for current flow from the drain to the source. The gate requires very little current to operate, making it ideal for low-power control systems.

Applications of the IRF530 in Power Circuits

The IRF530 is widely used in various power circuit applications. Some of the most common uses include:

Switching Power Supplies (SMPS):

Switching power supplies are a staple in modern electronics, and the IRF530 is a common choice for the high-side or low-side switch in these systems. Its ability to handle high voltages and currents while maintaining low switching losses makes it perfect for ensuring that the power supply is both efficient and reliable.

Motor Control:

The IRF530 is used in motor driver circuits, particularly for controlling brushless DC motors (BLDC). In these systems, the MOSFET acts as a switch to control the flow of current to the motor windings, allowing for precise speed and torque control. The MOSFET’s fast switching capability ensures that the motor runs smoothly and efficiently.

Inverter Circuits:

Inverters , which convert DC voltage into AC voltage, often rely on MOSFETs for efficient switching. The IRF530 is a key component in these circuits, as it can switch between on and off states quickly, allowing for smooth DC-to-AC conversion.

Power Distribution Systems:

In power distribution circuits, the IRF530 is used to switch large currents with minimal power loss. Its high voltage and current ratings ensure reliable operation, even in large-scale systems.

Power Amplifiers :

The IRF530 is also used in power amplifiers, particularly in RF ( radio frequency ) applications. Its low gate capacitance and fast switching characteristics make it ideal for amplifying high-frequency signals with minimal distortion.

The Significance of MOSFET Control in Power Circuits

Switching control in power circuits is an art of balancing efficiency, heat dissipation, and speed. The primary reason MOSFETs like the IRF530 are used in these systems is their ability to minimize power loss during the switching process. In conventional mechanical relays or other switching devices, the act of switching can cause significant energy loss due to resistance and heat generation. However, MOSFETs operate differently, with their low on-resistance ensuring that most of the energy flows through the device rather than being lost as heat.

Moreover, MOSFETs offer excellent scalability, meaning that as power requirements grow, MOSFETs like the IRF530 can handle increased load without necessitating a complete redesign of the system. This adaptability makes MOSFETs an integral part of modern power electronics, enabling everything from small battery-powered devices to large industrial power systems to operate efficiently.

Integrating IRF530 MOSFET for Optimal Performance

The integration of the IRF530 into a power circuit is not only about selecting the right component but also about understanding how to optimize its performance. Proper circuit design and component selection ensure that the IRF530 operates at its peak efficiency, improving overall system reliability and energy usage. In this part of the article, we will explore the best practices for integrating the IRF530 into a power circuit, focusing on driving strategies, thermal Management , and safety considerations.

Proper Gate Drive Circuit Design

One of the most crucial aspects of MOSFET operation is the gate drive circuit, which controls the on and off states of the device. The IRF530, like other MOSFETs, requires a voltage differential between its gate and source to switch on. When designing a gate drive circuit for the IRF530, it’s essential to consider the following:

Gate Drive Voltage:

The IRF530 requires a gate-source voltage (Vgs) of around 10V to fully turn on. If the gate drive voltage is too low, the MOSFET may not fully conduct, leading to higher on-resistance and thus more power loss. Conversely, if the voltage is too high, it may lead to unnecessary power dissipation. A typical gate drive circuit involves a driver IC that provides a regulated voltage source to ensure the MOSFET operates efficiently.

Gate Resistor:

A resistor is often placed between the gate and the driver to limit the inrush current and control the switching speed. Too high a resistance can slow down the switching speed, while too low a resistance can lead to excessive switching noise. A typical range is between 10 and 100 ohms.

Switching Frequency:

The IRF530 can switch at relatively high speeds, but the gate drive circuit must be able to supply the necessary current to charge and discharge the gate capacitance. At higher switching frequencies, the power dissipation in the gate drive circuit increases due to the charging and discharging of the gate. This must be accounted for to avoid overheating.

Dead Time:

In applications like motor control or inverters, both high-side and low-side MOSFETs are used in complementary pairs. It is important to introduce dead time in the gate drive to prevent both MOSFETs from turning on simultaneously, which could lead to a short circuit and damage the devices.

Thermal Management Considerations

Efficient thermal management is crucial when designing a power circuit with the IRF530. Although MOSFETs are generally more efficient than other types of switches, they still produce heat due to the inherent on-resistance, especially in high-current applications. Therefore, it's essential to design for adequate heat dissipation.

Heat Sinks:

For higher power applications, attaching a heat sink to the MOSFET package can significantly improve thermal performance. Heat sinks increase the surface area for heat dissipation, helping to maintain safe operating temperatures.

PCB Design:

The layout of the printed circuit board (PCB) plays a vital role in managing heat and minimizing resistance. Using thick copper traces for high-current paths and ensuring good thermal conductivity throughout the PCB can help spread heat and reduce the chances of hot spots.

Ambient Temperature:

The ambient temperature in which the IRF530 operates must also be considered. Higher ambient temperatures will reduce the device’s maximum current-handling capacity, so it may be necessary to choose components rated for higher currents or use active cooling techniques such as fans.

Safety and Protection Features

Although the IRF530 is a robust device, proper circuit protection is necessary to ensure that it operates within safe limits. Here are a few protection strategies:

Overvoltage Protection:

In some applications, the voltage across the MOSFET could exceed the maximum rated value, leading to breakdown. Diode s or zener diodes can be placed across the MOSFET to clamp any excessive voltage and protect the device.

Current Limiting:

A current sensing circuit can be used to monitor the current flowing through the MOSFET and limit it to safe levels. This is particularly important in motor control applications where sudden changes in current can cause damage.

Thermal Shutdown:

A thermal shutdown circuit can be added to the design to disable the MOSFET if it becomes too hot, preventing permanent damage.

In conclusion, the IRF530 power MOSFET is an excellent choice for switching applications in power circuits due to its high voltage and current ratings, low on-resistance, and efficient thermal management. By carefully considering gate drive, thermal design, and safety features, engineers can integrate the IRF530 into a variety of systems to enhance power efficiency, reduce energy loss, and improve overall circuit reliability.
