Understanding CH340C and Common Issues

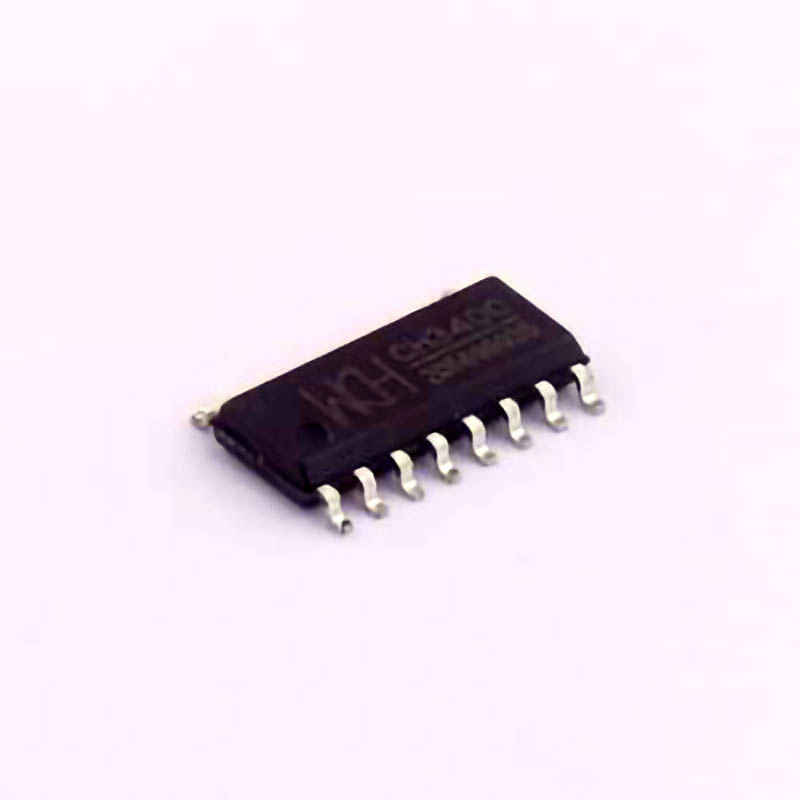

The CH340C is a popular USB-to-serial converter chip, commonly used in various devices such as Arduino boards, microcontrollers, and other embedded systems. Its main function is to provide an easy interface for serial communication between a computer and external hardware over a USB connection. While the chip is relatively inexpensive and widely used, like any hardware component, users often encounter issues. In this part of the article, we will explore some of the most common problems and the reasons behind them.

1. Driver Installation Problems

One of the most common issues when using the CH340C is the failure to install the necessary Drivers . The CH340C requires specific Drivers to communicate with your computer’s operating system. Without the correct driver, your operating system won’t recognize the device, and you won’t be able to establish a serial connection.

Possible Causes:

Missing or outdated drivers.

Conflicts with existing drivers.

Incorrect operating system version compatibility.

Solution:

To resolve driver-related issues, follow these steps:

Visit the manufacturer’s official website or trusted sources to download the latest version of the CH340 driver. Make sure you choose the correct version for your operating system (Windows, macOS, Linux).

Uninstall any previous drivers that may conflict with the CH340C (you can do this from the Device Manager on Windows or the System Preferences on macOS).

Reboot your computer after installation to ensure that the drivers load properly.

Check Device Manager (Windows) or System Report (macOS) to confirm that the CH340C is recognized as a COM port or USB device.

2. Device Not Recognized or Appears as Unknown Device

Sometimes after the driver is instal LED , the CH340C device may not be recognized properly. It might show up as an "Unknown device" or fail to appear at all in the device manager.

Possible Causes:

Faulty USB cable or port.

Conflicting drivers or software.

Power supply issues with the device you’re trying to communicate with.

Solution:

First, try connecting the CH340C to a different USB port. Preferably, use a port directly on your computer instead of a USB hub.

Replace the USB cable to eliminate the possibility of a faulty connection.

Ensure that your external hardware (Arduino, microcontroller, etc.) is powered correctly. Sometimes, power issues may prevent proper communication.

If the issue persists, check if there are any software conflicts. Disable any other software that may be trying to access the COM port.

3. Baud Rate Mismatch

Baud rate mismatch can be another frustrating problem when using the CH340C USB-to-serial converter. Serial communication requires both the transmitting and receiving devices to operate at the same baud rate, or data transmission will fail.

Possible Causes:

Incorrect baud rate set in the software or firmware.

Mismatch between the baud rate settings in the CH340C driver and the external device.

Solution:

Verify the baud rate settings in the software you're using. For example, in the Arduino IDE, you can adjust the baud rate in the Serial Monitor or the code itself.

Ensure that the external hardware (e.g., an Arduino board) is set to the correct baud rate. Check the datasheet or settings for your specific microcontroller or device.

If you're unsure, a common baud rate for Arduino boards is 9600, but it can vary depending on your project’s requirements.

4. Serial Port Not Responding or Data Corruption

Another frequent issue with CH340C-based devices is the serial port not responding or data being corrupted. This issue can be particularly troublesome for communication-heavy applications.

Possible Causes:

Signal interference or noise.

Cable quality or length.

Faulty serial port on the computer.

Solution:

Use a shorter, higher-quality USB cable to ensure reliable signal transmission. Cheap or long cables may introduce noise or weaken the signal.

If you’re using an external USB hub, try connecting the CH340C device directly to the computer. Hubs can introduce latency and instability in serial communication.

If you suspect the serial port is faulty, try using another computer to rule out hardware issues.

Make sure to check your serial communication settings in the terminal or software you're using. If you are transmitting large amounts of data, try using lower baud rates (e.g., 9600 or 115200) to reduce errors.

Advanced Troubleshooting and Optimizing CH340C Performance

While the basic troubleshooting steps covered in the previous section address many of the common problems, there are additional advanced solutions and optimizations you can apply to ensure smooth operation of your CH340C USB-to-serial converter.

5. Checking for Hardware Damage

Physical damage to the CH340C or the circuit board it’s mounted on can lead to issues that drivers and software can't resolve. It's essential to rule out hardware defects.

Possible Causes:

Overvoltage or static damage.

Short circuits or damaged solder joints.

Solution:

Inspect the board closely for visible signs of damage, such as burnt components or broken solder joints. If you spot any, you may need to replace the damaged parts or the entire board.

Test the device with a different microcontroller or Arduino to ensure that the issue lies with the CH340C and not the connected hardware.

Use a multimeter to test for shorts or incorrect voltage levels on the circuit, especially around the CH340C chip.

6. Updating Firmware

Sometimes, the issues you're facing could be due to outdated or incompatible firmware. Many manufacturers release firmware updates to improve compatibility or fix known bugs. Updating the firmware on your microcontroller or device that uses the CH340C can sometimes resolve issues.

Solution:

Check if there is a firmware update available for your specific device. If using an Arduino, visit the Arduino IDE website or forums for the latest firmware releases.

Follow the manufacturer’s instructions to update the firmware. Ensure that your device is connected and properly powered during the update process.

7. Software Conflicts and Resource Management

Software conflicts are another potential cause of CH340C issues. Programs such as Bluetooth, virtual COM port software, or even antivirus applications can sometimes interfere with the device’s functionality. Additionally, your computer may not be managing serial port resources efficiently.

Possible Causes:

Conflicts with other software accessing the same COM port.

Limited system resources (e.g., low memory or CPU overload).

Solution:

Close any applications that might be using or locking the serial port, such as Bluetooth software or serial terminal programs.

Check your computer’s resource usage (using Task Manager on Windows or Activity Monitor on macOS). Ensure your system is not overloaded with processes that might cause instability.

Try running the application that communicates with the CH340C as an administrator, especially on Windows, to resolve permission-related issues.

8. Use of External Power Sources

For projects that require higher current than what the USB port can provide, it’s a good idea to use an external power supply. Devices such as Arduino or other microcontrollers often require more current than what a typical USB port can supply, especially when peripherals like sensors, LED s, or motors are attached.

Solution:

Ensure your CH340C device is receiving adequate power. If your microcontroller or other attached devices need more power, connect an external power supply to the project.

Use a regulated 5V or 3.3V power supply, depending on the voltage requirement of your hardware. Double-check the voltage levels to prevent damage.

9. Testing and Using Alternative Drivers

In some rare cases, using alternative drivers can resolve compatibility issues with the CH340C. There are different versions of drivers available online, some of which are optimized for specific operating systems or configurations.

Solution:

Search for alternative CH340 drivers that are optimized for your platform. Many user communities, especially forums related to Arduino, provide different versions of drivers.

Test each driver to see if it resolves your issue. Be cautious and always download from reliable sources to avoid malware.

10. Conclusion and Best Practices

The CH340C is a versatile and reliable USB-to-serial converter, but like any piece of technology, it can run into issues. By following the steps outlined in this article, you can address most common problems and optimize your setup for smooth serial communication.

Key takeaways:

Ensure proper driver installation and update regularly.

Double-check all hardware connections and power sources.

Use high-quality cables and avoid interference.

Troubleshoot using system resource management and external power sources.

With these tips in mind, you’ll be better equipped to handle and resolve issues with the CH340C and enjoy seamless communication between your computer and external hardware.

By understanding these common problems and applying the right solutions, you can ensure that your CH340C device runs smoothly, allowing you to focus more on your projects and less on troubleshooting. Happy tinkering!
