Understanding the BTS6163D and Identifying Common Issues

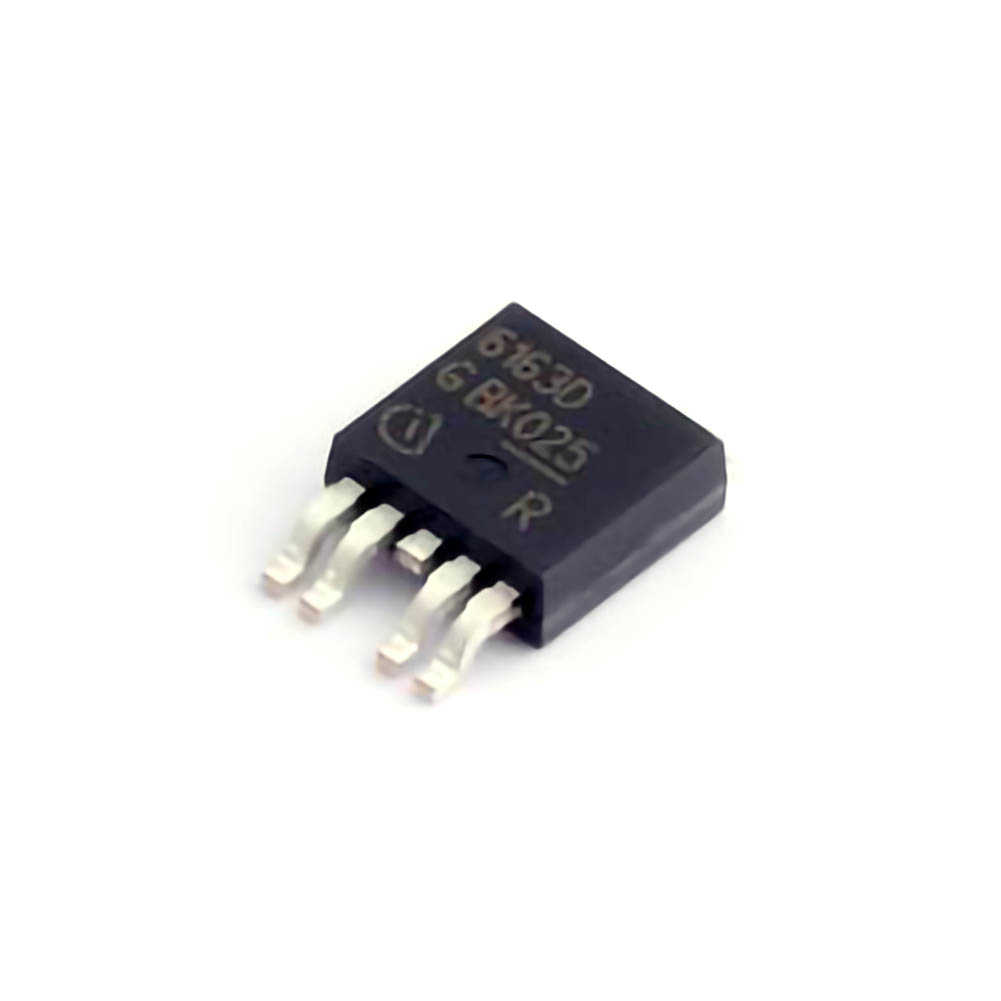

The BTS6163D is a robust and widely used Power Management device known for its efficiency in managing power supply circuits. This smart high-side switch is designed for applications such as automotive electronics, industrial equipment, and general-purpose power management systems. While the BTS6163D is reliable, like any other electronic component, it can occasionally face issues. In this article, we will explore the common problems encountered with the BTS6163D and provide practical troubleshooting methods for resolving them.

1. Power Supply Issues

One of the most common problems faced by users of the BTS6163D is related to the power supply. A malfunctioning power supply can lead to the device failing to function properly or at all. The BTS6163D requires a stable and consistent input voltage to operate efficiently. If the power supply is unstable, it could cause the device to either malfunction or fail completely.

Solution:

Check Voltage Levels: Begin by checking the input voltage to ensure it falls within the operating range specified by the manufacturer. Typically, the BTS6163D requires a voltage between 5V and 40V. If the voltage is too high or too low, the device will not work correctly.

Inspect Power Source: If you notice fluctuations in the voltage, ensure that the power source is stable. Use a multimeter to measure voltage at the power input terminal of the BTS6163D to verify the supply's consistency.

Examine Ground Connections: A poor ground connection can also result in power supply issues. Make sure all ground connections are secure and there is no corrosion or wear on the connectors.

2. Overheating and Thermal Shutdown

The BTS6163D has built-in thermal protection to prevent damage due to overheating. However, excessive current draw or poor ventilation in the operating environment can lead to thermal shutdown, where the device stops functioning to prevent further damage.

Solution:

Check the Ambient Temperature: Ensure the device is operating within the temperature range specified by the manufacturer. Excessively high temperatures in the surrounding environment can cause the device to overheat.

Improve Ventilation: If the BTS6163D is installed in a confined space or without adequate airflow, heat may build up. Enhance the cooling system or move the device to an area with better airflow.

Monitor Load Conditions: Overloading the BTS6163D can lead to excessive heat. Ensure the load current does not exceed the specified limits. Use a current meter to check the draw and adjust accordingly.

Consider Heat Sinks: In cases of high power demands, adding a heat sink or using a fan for active cooling can help dissipate heat more efficiently.

3. Faulty Switch Operation (On/Off Cycle Problems)

One of the most critical functions of the BTS6163D is switching. If the device is not switching correctly between ON and OFF states, it could signal an underlying problem with the control signal, or the internal switching mechanism.

Solution:

Examine Control Signals: The BTS6163D operates based on logic input signals. Verify that the control signals are correct and within the specified range. If the control signals are too weak or fluctuate, the device might fail to switch properly.

Check for Short Circuits: A short circuit in the load or within the device itself can prevent the BTS6163D from properly toggling its state. Use an ohmmeter to check for any unintended short circuits on the load or wiring.

Inspect the Gate Driver: The gate driver circuitry of the BTS6163D is crucial for its switching behavior. Ensure that the gate drive voltage is adequate, and there is no damage to the driver circuit.

Test with Different Loads: Sometimes, the issue could stem from the type of load connected to the BTS6163D. Test the device with different loads to identify if the issue persists across all conditions.

4. Communication Failures

In more complex systems where the BTS6163D is part of a larger network of devices, communication errors can occur, especially when the device is integrated with a microcontroller or digital interface . These failures might cause the device to not respond as expected.

Solution:

Check Wiring and Connections: Inspect all wiring and connections related to communication. Loose or damaged wiring can lead to communication failures. Ensure all pins are connected securely.

Verify Signal Integrity: Use an oscilloscope or logic analyzer to check the quality of the signals being transmitted between the BTS6163D and the controlling system. Signal degradation or noise could interfere with communication.

Review Firmware and Software Settings: In systems where the BTS6163D is controlled via software, make sure the firmware or software configurations are correct. Software bugs or incorrect settings can also lead to communication failures.

Advanced Troubleshooting and Preventative Measures for the BTS6163D

In this second part, we will delve into more advanced troubleshooting techniques and preventative measures to help ensure the long-term reliability and performance of the BTS6163D in your applications.

5. Short Circuit Protection

The BTS6163D is designed with short-circuit protection to safeguard against damage from excessive current draw. However, in some cases, the device may not be able to detect certain types of faults, or the protection feature may fail to reset properly after a fault occurs.

Solution:

Check Fault Status: The BTS6163D provides a fault output signal when a short circuit or other fault is detected. Monitor this output signal using an oscilloscope or logic analyzer. If the fault persists even after correcting the short circuit, the fault flag might not reset automatically.

Reset Fault Protection: Some models of the BTS6163D require manual intervention to reset the fault condition. Review the datasheet and follow the recommended procedure for clearing fault conditions.

Inspect External Components: If the short-circuit protection continually triggers, inspect external components, such as resistors or diodes, that might be influencing the current path.

6. ESD Protection and Static Discharge

The BTS6163D is sensitive to electrostatic discharge (ESD), which can cause permanent damage to the device. ESD can occur when the device is handled improperly or exposed to high-voltage environments without proper protection.

Solution:

Use ESD Precautions: Always use ESD-safe tools and wrist straps when handling the BTS6163D. Ensure that the device is stored and operated in an ESD-safe environment.

Verify Grounding: Ensure that all equipment used to test or operate the BTS6163D is properly grounded to prevent static build-up.

Install External ESD Protection: If necessary, install external ESD protection components, such as transient voltage suppression ( TVS ) diodes, to protect against voltage spikes.

7. Frequent Failures – Checking for Design Issues

If the BTS6163D fails frequently in your application, it might indicate a deeper design issue rather than a simple fault. In these cases, it is important to analyze the circuit thoroughly to identify potential weaknesses.

Solution:

Examine the Power Design: Review the entire power design of the circuit, including the power distribution network, capacitor s, and inductors. Ensure that components are chosen based on the expected load conditions and that the layout adheres to best practices for power management.

Check for Inrush Current: High inrush currents during startup can damage the BTS6163D. Include soft-start mechanisms or current-limiting resistors in your design to reduce inrush current.

Review Load Specifications: Double-check the load specifications and ensure they align with the capabilities of the BTS6163D. Overloading the device can cause premature failure.

8. Preventative Measures for Longevity

While troubleshooting helps fix immediate issues, implementing preventative measures can significantly improve the longevity and reliability of the BTS6163D in the long term.

Solution:

Proper Heat Management: As mentioned earlier, ensure proper heat dissipation. Overheating is a common cause of failure, and it is vital to install adequate cooling systems.

Regular Maintenance: Periodically inspect the device for signs of wear, corrosion, or damage. Clean the device and surrounding components, especially in harsh environments.

Surge Protection: Implement surge protection devices to prevent voltage spikes that can damage the BTS6163D during power-ups or power-downs.

By following these troubleshooting steps and preventative measures, you can significantly enhance the performance and lifespan of your BTS6163D. Whether dealing with common issues like power supply faults or more advanced problems like communication failures, proper diagnosis and attention to detail are key to resolving any concerns effectively.
