The MAX3232CPWR is a highly reliable and widely used chip for converting voltage levels between TTL and RS-232 standards. Despite its robustness, issues can sometimes arise during its implementation. This article provides insights into common troubleshooting methods and practical solutions to ensure seamless operation of the MAX3232CPWR.

Understanding MAX3232CPWR and Common Issues

The MAX3232CPWR is an essential component in many electronic systems, enabling communication between microcontrollers and other devices via RS-232 serial communication protocols. This chip is widely used in applications where UART (Universal Asynchronous Receiver/Transmitter) communication is required. It's a part of a broader family of MAX3232 chips from Maxim Integrated, designed to convert signals from TTL (Transistor-Transistor Logic) levels to the higher voltage levels used in RS-232 systems.

While the MAX3232CPWR is renowned for its reliability, issues can still crop up when integrating it into a system. Knowing how to troubleshoot these problems effectively is key to ensuring a smooth and error-free deployment. In this first part of the article, we will explore the basics of the MAX3232CPWR and discuss some common issues you might encounter during its use.

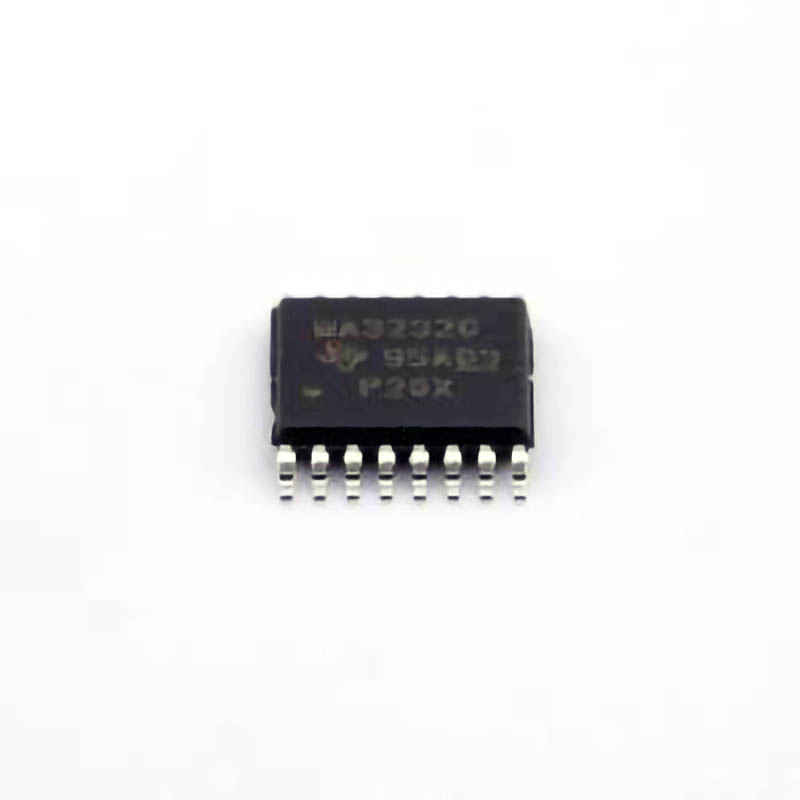

Overview of MAX3232CPWR

The MAX3232CPWR is a dual-channel RS-232 transceiver , meaning it can handle two separate data lines, converting logic levels for both transmission and reception. It operates with a wide supply voltage range (3V to 5.5V), which makes it compatible with many different systems. Typically, it is used in embedded systems, industrial equipment, and communication module s, offering reliable signal conversion between UART and RS-232 protocols.

Some key features of the MAX3232CPWR include:

Low Power Consumption: It is designed to operate with low power, making it ideal for battery-powered devices.

Wide Voltage Range: The chip can handle voltage levels from 3V to 5.5V, which ensures compatibility with a broad range of systems.

Fast Data Rates: It supports data rates of up to 250kbps, providing efficient communication for many applications.

High ESD Protection: The MAX3232CPWR includes built-in protection against electrostatic discharge (ESD), which enhances its durability and reliability.

Common Troubleshooting Issues with MAX3232CPWR

Even with its robust design, users sometimes encounter problems when integrating the MAX3232CPWR into their circuits. Some of the most common issues include signal integrity problems, power supply concerns, incorrect wiring, and communication errors. Let's dive deeper into these problems and how you can solve them.

1. Incorrect Voltage Levels

The MAX3232CPWR is designed to convert voltage levels between TTL (0V to 3.3V) and RS-232 (±12V). If the voltage levels at the input pins are incorrect, the chip may not function properly. One common mistake is supplying the MAX3232CPWR with an incorrect supply voltage (either too high or too low). If the supply voltage exceeds the maximum allowed 5.5V, it could damage the chip. Conversely, providing less than 3V could cause improper operation.

Solution:

Ensure that the power supply to the MAX3232CPWR is within the recommended range of 3.0V to 5.5V. Always double-check the voltage ratings of the components before powering up the system.

2. Poor Signal Quality

RS-232 signals can degrade if the wires are too long or not properly shielded. When working with the MAX3232CPWR, one of the issues you might encounter is degraded signal quality, which can result in unreliable communication, especially in noisy environments.

Solution:

Use properly shielded cables for RS-232 communication, especially if the signal path extends over long distances. Additionally, make sure to keep the wiring as short as possible to minimize signal degradation. If possible, use higher quality components for the communication lines.

3. Incorrect Pinout Connections

One of the most common mistakes when using the MAX3232CPWR is incorrect pinout connections. The chip has multiple pins for different functions, including power supply pins, ground pins, and data lines for transmission and reception. It's crucial to ensure that the TX (Transmit) and RX (Receive) pins of the MAX3232CPWR are correctly connected to the corresponding pins on the microcontroller or device.

Solution:

Consult the datasheet and double-check the pinout configuration before connecting the chip to your circuit. A typical MAX3232CPWR configuration involves connecting the TX, RX, and ground pins correctly to the other components in the system.

4. Baud Rate Mismatch

Another issue commonly encountered in UART communication involves baud rate mismatches between devices. If the baud rate settings on the MAX3232CPWR do not match the baud rate settings of the transmitting or receiving device, data transfer can become unreliable or completely fail.

Solution:

Ensure that the baud rate settings on both ends of the communication channel (the MAX3232CPWR and the connected devices) are identical. This can often be configured through software on the microcontroller or the connected device.

5. Inadequate Grounding

Inadequate grounding is a frequent cause of serial communication issues. If the ground pins are not properly connected between the MAX3232CPWR and other devices, the signals can be misinterpreted, resulting in communication errors.

Solution:

Make sure that the ground pin on the MAX3232CPWR is properly connected to the ground of the other devices in the communication chain. A solid ground connection is critical to ensure proper voltage level conversion.

Advanced Troubleshooting and Solutions

In this section, we will delve into more advanced troubleshooting techniques for dealing with complex issues that might arise when using the MAX3232CPWR in embedded systems. These problems may require a deeper understanding of the components and the system as a whole.

6. Data Frame Corruption

Sometimes, the data transmitted or received via the MAX3232CPWR may become corrupted. This issue is often related to noise or electrical interference affecting the data lines. This can lead to incorrect or garbled data being received by the connected device.

Solution:

To prevent data corruption, ensure that the data lines are properly shielded and that you are using quality components. Additionally, use error-checking protocols such as parity bits or checksums to detect and correct errors in the transmitted data.

7. Device Not Recognized by the System

In some cases, the MAX3232CPWR might not be recognized by the system, even though the chip is properly powered and connected. This can be caused by issues with the communication setup or incorrect configuration of the UART protocol.

Solution:

Check the system's communication settings, including the parity, stop bits, and flow control options. These settings must match exactly between the MAX3232CPWR and the other devices involved in the communication. Additionally, make sure that any necessary drivers or software for the device are installed and configured correctly.

8. Thermal Issues and Overheating

Like most electronic components, the MAX3232CPWR can be sensitive to temperature fluctuations. If the chip operates outside its specified temperature range (typically -40°C to +85°C), it can malfunction or even become damaged.

Solution:

Ensure that the system operates within the specified temperature range. If the MAX3232CPWR is exposed to high temperatures, consider adding cooling solutions such as heat sinks or active cooling fans to maintain proper thermal conditions.

9. Electrostatic Discharge (ESD) Sensitivity

Although the MAX3232CPWR has built-in ESD protection, it is still important to take precautions against electrostatic discharge (ESD) during assembly and installation. ESD can damage the chip, leading to erratic behavior or complete failure.

Solution:

Take proper ESD precautions when handling the MAX3232CPWR, such as using an ESD-safe workbench, wrist straps, and grounding mats. Avoid unnecessary movement and ensure that the environment is free from static electricity sources.

10. Long-Term Reliability Issues

Over time, components can experience degradation, leading to reliability issues with the MAX3232CPWR. Issues such as signal attenuation, internal component wear, or accumulated dirt and corrosion can all affect the long-term performance of the chip.

Solution:

To ensure long-term reliability, perform regular maintenance checks on the system. Inspect the MAX3232CPWR for any signs of physical damage, corrosion, or wear. Replace any components that appear to be worn out or degraded.

Conclusion

The MAX3232CPWR is a robust and reliable chip for serial communication in embedded systems, but like any electronic component, it can encounter issues. By understanding the common problems and solutions discussed in this article, you can ensure smooth operation and troubleshoot effectively if problems arise. Whether you are working with voltage mismatches, data corruption, or device recognition issues, having a solid grasp of troubleshooting methods will help you maximize the performance of the MAX3232CPWR and minimize downtime in your system.

By following the tips and techniques presented in this article, you can confidently integrate the MAX3232CPWR into your projects and overcome any challenges that come your way.
