Introduction to AT24C256C-SSHL-T and Common Issues

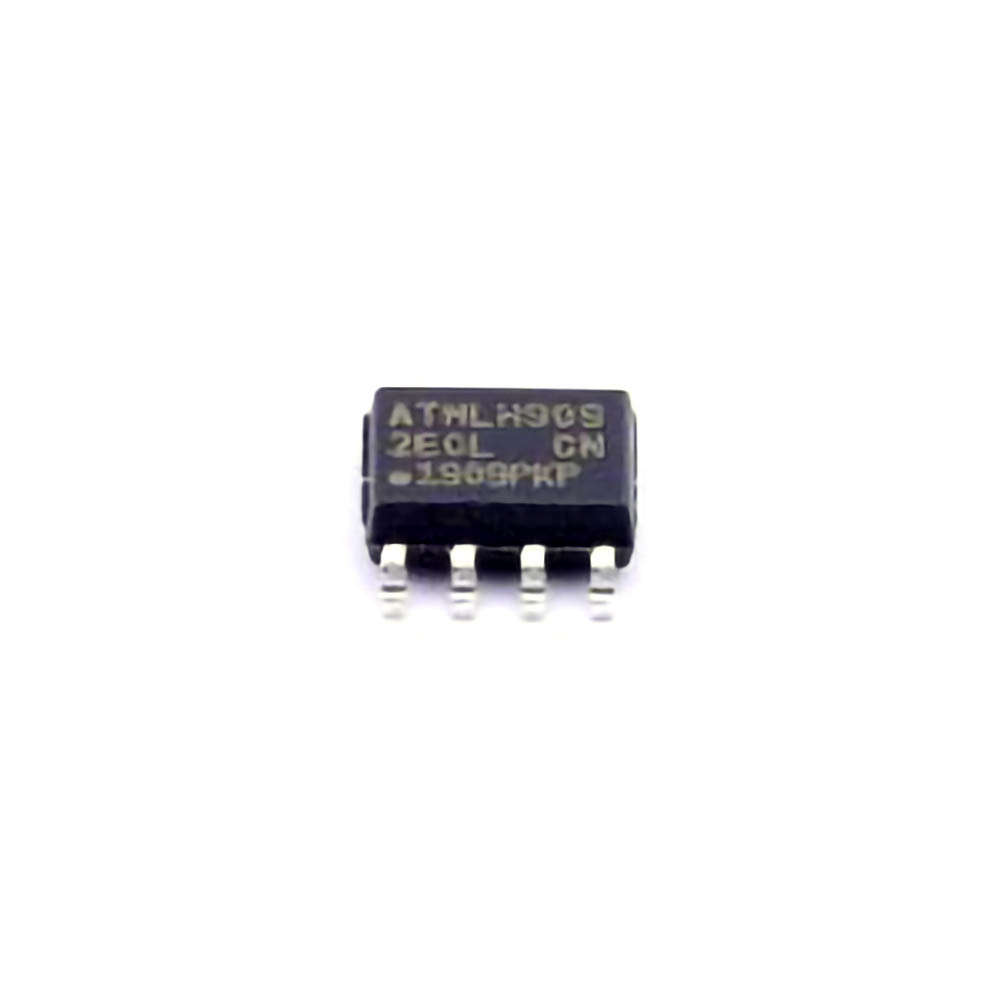

The AT24C256C-SSHL-T is a 256 Kbit (32 Kbyte) I2C-compatible EEPROM from Microchip Technology, widely used in embedded systems for data storage. With a small 8-pin package, it’s ideal for applications where non-volatile storage is needed but space is limited. It operates over an I2C interface , making it compatible with many microcontrollers, sensors, and other digital systems.

Like any integrated circuit, the AT24C256C-SSHL-T is susceptible to various issues during development or operation. This article explores the most common problems users face and provides comprehensive solutions to troubleshoot and fix these issues.

1.1 Understanding the AT24C256C-SSHL-T

Before diving into troubleshooting, it’s important to understand how the AT24C256C-SSHL-T functions. It communicates over an I2C bus, with a unique 7-bit address that allows multiple devices to share the same bus. This EEPROM offers:

256 Kbit memory (32 Kbytes)

Write and read operations

I2C interface with Clock speeds up to 1 MHz

Low Power consumption

These features make it an ideal choice for many applications, including consumer electronics, automotive, industrial systems, and Communication devices.

However, due to its reliance on the I2C protocol and electrical characteristics, users may encounter various operational issues. Let’s discuss the most common problems and their solutions.

1.2 Issue 1: Communication Failure or Bus Lockup

Symptoms:

The EEPROM does not respond to read/write requests.

The microcontroller cannot communicate with the EEPROM.

The I2C bus gets locked up, preventing any other devices from functioning properly.

Causes:

Communication failure often arises from improper wiring, incorrect address configuration, or issues with the I2C bus itself. The AT24C256C-SSHL-T may fail to communicate if the SDA (Serial Data) or SCL (Serial Clock) lines are incorrectly connected or if there is electrical noise on the I2C lines. A bus lockup can occur if the EEPROM does not acknowledge a signal properly, causing the system to wait indefinitely for a response.

Solutions:

Check the I2C wiring: Ensure that the SDA and SCL lines are correctly connected between the EEPROM and the microcontroller. Verify the connections against the AT24C256C-SSHL-T datasheet, paying particular attention to pull-up resistors on both lines.

Verify the address configuration: The AT24C256C-SSHL-T uses a 7-bit I2C address. Make sure that the correct address is used in the software, accounting for any potential address bit changes based on the A0-A2 pins (used to select the device address).

Bus reset: If the I2C bus is locked, reset the bus by toggling the SCL line or performing a reset on the microcontroller.

Check for noise or interference: Use proper filtering and ensure that the I2C lines are shielded from electrical noise that may disrupt communication.

1.3 Issue 2: Data Corruption or Inaccurate Readings

Symptoms:

The data read from the EEPROM is inconsistent or incorrect.

Writes to the EEPROM fail to save data properly.

Causes:

Data corruption can occur due to several reasons, including improper power supply, write cycle interruptions, or issues with the I2C communication protocol. The AT24C256C-SSHL-T may also become unstable if the write cycle isn’t correctly completed.

Solutions:

Power supply stability: Ensure that the power supply to the EEPROM is stable and within the recommended voltage range (2.5V to 5.5V). Power fluctuations or insufficient voltage can lead to data corruption.

Wait for write completion: The AT24C256C-SSHL-T requires time to write data to memory. Make sure that the microcontroller waits for the write cycle to complete before attempting a read or another write. This can be achieved by checking the “busy” flag in the status register or using a delay.

Check timing constraints: Ensure that the timing between the SDA and SCL lines complies with the EEPROM’s specifications. Any violation of timing parameters, such as clock stretching or too fast a clock speed, can lead to incorrect readings.

1.4 Issue 3: Write Failure or Incomplete Data Writes

Symptoms:

Data written to the EEPROM is incomplete or fails to be written at all.

Write operations return an error, or there is no acknowledgment.

Causes:

Write failure is often caused by the EEPROM not being given enough time to complete the write operation, or if the write cycle is interrupted. Another common issue is writing to an invalid address or exceeding the memory size limits.

Solutions:

Ensure correct write timing: The AT24C256C-SSHL-T requires a minimum of 5 milliseconds for each page write operation (for pages up to 64 bytes). Ensure the microcontroller gives enough time between write operations.

Validate write address: Double-check the address where data is being written. The AT24C256C-SSHL-T has a 16-bit address, so ensure that the write address falls within the valid range (0x0000 to 0x7FFF).

Check for page write restrictions: The AT24C256C-SSHL-T allows writing to pages up to 64 bytes. Ensure that writes to larger chunks of data are correctly divided into smaller, 64-byte blocks.

Advanced Troubleshooting and Preventative Measures

While the basic issues are often resolved with simple checks, more advanced problems can occur in more complex designs. Below, we will cover advanced troubleshooting techniques and preventative measures to avoid future issues with the AT24C256C-SSHL-T.

2.1 Issue 4: Power-Up Initialization Problems

Symptoms:

The EEPROM doesn’t initialize correctly after power-up.

The device fails to respond on the I2C bus until the system is reset.

Causes:

The AT24C256C-SSHL-T requires proper initialization when power is first applied. Problems during power-up can prevent the device from entering the correct operating mode. This may happen if the I2C bus is not properly configured or if there’s an issue with the reset circuit of the system.

Solutions:

Proper reset circuitry: Ensure that the EEPROM is connected to a reset circuit that guarantees proper initialization at power-up. This circuit should hold the device in reset until the power supply is stable and then release it.

Check the I2C bus idle state: Ensure that the I2C bus lines (SDA and SCL) are idle (high) during power-up. Any floating lines or incorrect states can cause the EEPROM to fail to initialize correctly.

Use an I2C pull-up resistor: Verify that the I2C lines have appropriate pull-up resistors (typically 4.7kΩ to 10kΩ) to ensure proper communication during initialization.

2.2 Issue 5: Excessive Power Consumption

Symptoms:

The AT24C256C-SSHL-T draws more power than expected, affecting the overall system’s power budget.

Power consumption spikes during write operations.

Causes:

Excessive power consumption is typically related to the number of write cycles, clock speed, or the operating voltage of the EEPROM. In addition, certain system configurations may cause the EEPROM to remain in an active state longer than necessary.

Solutions:

Optimize write frequency: Minimize the frequency of write operations to reduce power consumption. Write to the EEPROM only when necessary, and use page writes to reduce the number of write cycles.

Use low-power modes: Some microcontrollers offer low-power I2C modes that can be used to minimize the power consumption of the EEPROM during idle periods.

Lower operating voltage: Ensure that the AT24C256C-SSHL-T is operating at the minimum required voltage for your application (typically 2.5V). Using a higher voltage than necessary can lead to increased power consumption.

2.3 Issue 6: Hardware Faults and Component Damage

Symptoms:

The EEPROM fails completely and does not respond at all to I2C commands.

Physical damage to the IC, such as burnt pins or visible signs of stress.

Causes:

Hardware faults can be caused by several factors, including excessive voltage, static discharge, or thermal stress during soldering. The AT24C256C-SSHL-T is sensitive to these conditions, and damage may render the device non-functional.

Solutions:

Ensure proper handling: Use appropriate anti-static precautions when handling the EEPROM to prevent electrostatic discharge (ESD) damage. Always use grounding straps and ESD-safe equipment.

Check soldering quality: Verify that the EEPROM is correctly soldered to the PCB. Cold solder joints or short circuits can lead to faulty operation. Use proper reflow or hand-soldering techniques.

Monitor voltage levels: Ensure that the voltage supplied to the EEPROM is within the recommended range. Avoid exceeding the maximum voltage ratings listed in the datasheet to prevent damage.

Conclusion

The AT24C256C-SSHL-T is a versatile and reliable EEPROM that can be used in a wide variety of embedded applications. However, like any electronic component, it is not immune to issues. Common problems such as communication failures, data corruption, write failures, and power-up issues can be diagnosed and resolved with careful troubleshooting.

By following the solutions outlined in this article, engineers can resolve most issues efficiently and ensure the reliable performance of the AT24C256C-SSHL-T in their designs. Additionally, implementing preventative measures during the design phase, such as proper power supply design, I2C bus configuration, and handling practices, can minimize the risk of future problems.
