Introduction to Voltage Comparators and the Role of LM293 in Intelligent Power Protection Systems

In the modern world, power systems are critical to the operation of everything from household appliances to large industrial machinery. The protection of these systems is paramount, as electrical faults or fluctuations can cause significant damage to both equipment and infrastructure. This is where intelligent power protection circuits come into play, utilizing advanced components like the LM293 voltage comparator to ensure reliability and safety.

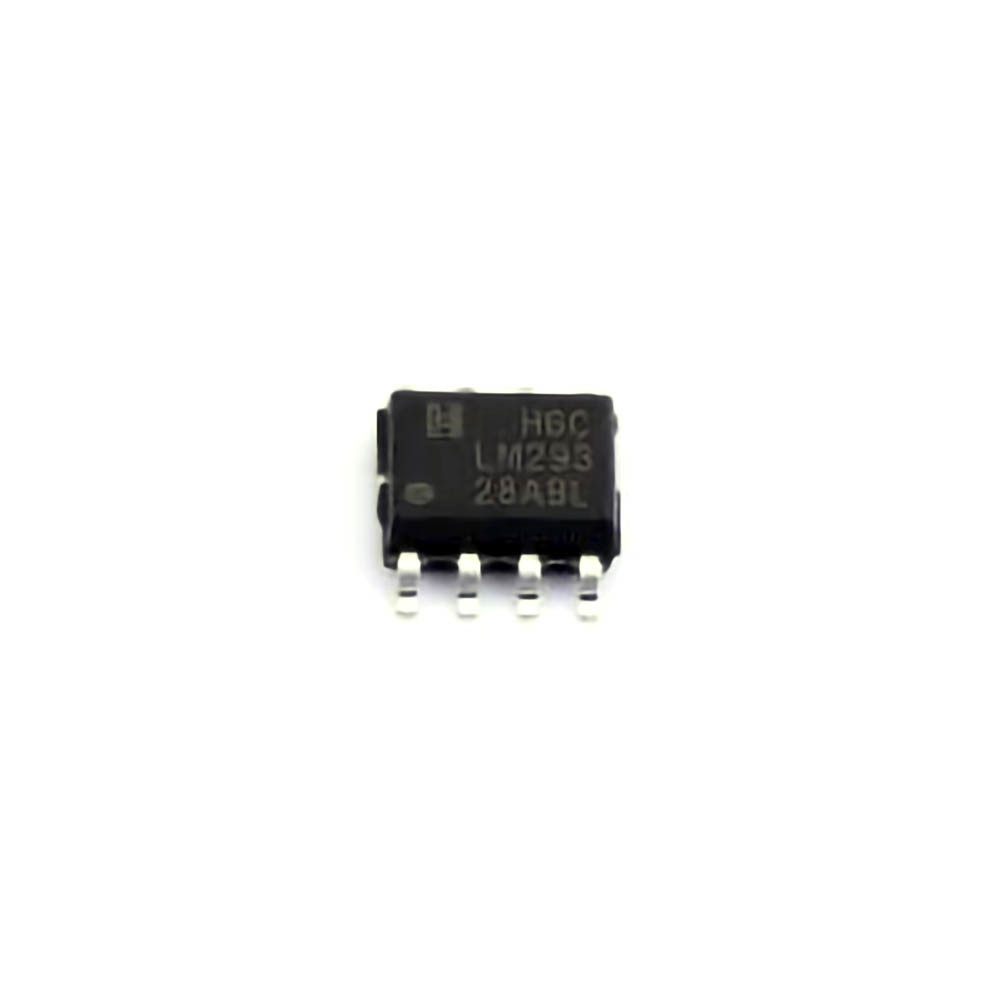

The LM293 is a dual comparator designed by Texas Instruments, widely used in circuits requiring high-speed, precise voltage comparisons. Voltage Comparators are fundamental components in various electrical applications, including over-voltage and under-voltage detection, which are crucial in power protection systems. By ensuring that voltage levels stay within safe operating ranges, the LM293 plays a key role in safeguarding electrical equipment.

This article will delve into the function and importance of the LM293 voltage comparator in intelligent power protection circuits, discussing its technical features, benefits, and applications.

Understanding Voltage Comparators

Before we dive into the specifics of the LM293, it’s essential to understand the role of a voltage comparator. A voltage comparator is an electronic component that compares two input voltages and outputs a signal based on which voltage is higher. In its simplest form, a comparator has two input terminals: a non-inverting input and an inverting input. The comparator output switches between two levels depending on the relative voltage at the inputs.

In the case of the LM293, it is a dual comparator, meaning it contains two separate comparators in one package. This dual functionality makes it highly versatile and ideal for applications where multiple voltage comparisons are required simultaneously.

Comparators are typically used in circuits that need to detect specific voltage thresholds. These could be set voltages that indicate a fault condition or an operational threshold in a power system. For example, a comparator can be used to monitor the voltage of a power supply, and when it crosses a predefined threshold—either above or below the nominal voltage—a signal is generated to alert the system to take corrective action.

Introduction to Intelligent Power Protection Circuits

Intelligent power protection circuits are advanced systems designed to monitor the performance of electrical circuits and automatically take action when voltage conditions go out of specification. These circuits often incorporate microcontrollers, sensors, and comparators like the LM293 to enhance their performance and response times.

The role of voltage comparators in these systems is multifaceted. A common function of comparators is to monitor the voltage level of a power supply, detecting over-voltage or under-voltage conditions. Over-voltage protection is crucial because excessive voltage can damage sensitive components, such as microcontrollers, transformers, and capacitor s. Under-voltage protection is equally important, as operating below a certain voltage can result in poor performance, malfunction, or even failure of electrical systems.

Intelligent power protection systems are designed to react in real-time, offering precise control and protection for sensitive equipment. The LM293 plays an essential role in this process by providing fast, reliable voltage comparisons that can trigger safety mechanisms like circuit breakers, alarms, or even automatic shutdown procedures.

Key Features of the LM293 Voltage Comparator

The LM293 voltage comparator offers several advantages that make it suitable for use in intelligent power protection systems. These include:

Dual Comparator Configuration: The LM293 contains two independent comparators, each capable of operating at different thresholds. This is ideal for systems that require multiple voltage levels to be monitored simultaneously.

Low Power Consumption: The LM293 is designed to operate with minimal power consumption, which is particularly important in energy-sensitive applications and systems that require prolonged operation without frequent maintenance or replacement.

Wide Voltage Range: The LM293 can operate over a broad voltage range, typically from 3V to 40V. This flexibility allows the comparator to be used in various applications, from low-voltage systems to industrial power supplies.

Fast Response Time: With a response time of typically 300ns, the LM293 is capable of quickly detecting voltage deviations and providing timely feedback to the protection system. This fast response is crucial for preventing damage to equipment or systems in cases of sudden voltage spikes or dips.

Hysteresis Capability: The LM293 has an optional hysteresis feature, which helps to prevent unwanted oscillations in the output when the input voltage is close to the threshold. This feature ensures stable operation in noisy or fluctuating environments.

Open-Collector Output: The LM293 features an open-collector output, which allows for easy integration with various control systems, including microcontrollers, alarms, and other protection circuitry.

These features make the LM293 an ideal candidate for use in intelligent power protection circuits, where precise voltage monitoring, fast response, and reliability are critical.

Applications of the LM293 in Power Protection Circuits

The primary application of the LM293 in intelligent power protection circuits is voltage monitoring. By constantly comparing the supply voltage to preset thresholds, the comparator can determine whether the voltage is within acceptable limits. If the voltage goes above or below these limits, the comparator triggers an alert or activates corrective actions, such as disconnecting the load or engaging a backup power source.

1. Over-voltage Protection

Over-voltage protection is a crucial aspect of intelligent power protection systems. When the voltage exceeds a safe threshold, it can cause permanent damage to components such as resistors, capacitors, and semiconductors. The LM293 can be used to continuously monitor the voltage level of a power supply. When the voltage surpasses the predefined upper limit, the comparator’s output changes state, signaling a fault condition. This can trigger protective mechanisms like circuit breakers, relays, or alarms to prevent damage to the equipment.

2. Under-voltage Protection

Just as over-voltage can be harmful, operating below the required voltage can lead to poor performance, malfunction, or failure of electrical systems. The LM293 comparator can be configured to monitor for under-voltage conditions, alerting the system when the voltage falls below the required threshold. This ensures that the equipment operates only when the power supply is adequate, preventing operational issues caused by insufficient voltage.

3. Over-current Protection

In some cases, the LM293 is also integrated into circuits for over-current detection. When used in conjunction with current sensing circuits, the LM293 can help detect when current levels exceed safe values, triggering protective actions to avoid overheating, component stress, or potential fire hazards.

Advanced Techniques and Practical Examples of LM293 in Power Protection Systems

In this section, we will explore advanced techniques for using the LM293 voltage comparator in power protection circuits and discuss practical examples of its application in various real-world scenarios.

Advanced Circuit Design Considerations

While the LM293 provides a simple and effective way to monitor voltage levels, its integration into more complex protection systems requires careful design considerations. Here are a few advanced techniques to enhance the performance of intelligent power protection circuits using the LM293.

1. Using Hysteresis for Stability

One of the common challenges in voltage comparison circuits is dealing with noise or small fluctuations around the threshold voltage. Without hysteresis, comparators can oscillate rapidly between states, leading to false alarms or erratic behavior. The LM293 allows for the integration of hysteresis, which adds a small amount of feedback to the input voltage, ensuring that the comparator only switches states when the voltage moves sufficiently away from the threshold. This can greatly improve stability and prevent undesired triggering.

2. Implementing Window Comparators

In more sophisticated power protection circuits, a window comparator is often used. A window comparator involves two comparators, each set to different threshold voltages. The LM293, with its dual comparator configuration, is ideally suited for this application. The circuit monitors whether the input voltage remains within a specific range or window. If the voltage falls outside of this range—either above the upper threshold or below the lower threshold—an alarm or protective action can be triggered. This technique is useful in ensuring that voltage stays within a safe operational range.

3. Integrated Microcontroller Systems

For even greater flexibility and control, the LM293 can be integrated with microcontroller-based systems. The microcontroller can read the output of the LM293 and make decisions based on multiple inputs from various comparators. For instance, the microcontroller could use the LM293 to monitor both over-voltage and under-voltage conditions and respond accordingly—either by activating relays to disconnect the load, sending notifications, or triggering backup systems. This type of setup is commonly found in advanced power protection systems for servers, industrial machinery, and critical infrastructure.

Practical Example: Power Protection in Solar Power Systems

One notable example of the LM293’s application is in the protection of solar power systems. These systems are sensitive to fluctuations in voltage, and any voltage deviation beyond a set threshold could damage the solar inverters, batteries, or other components. By using the LM293 to monitor the voltage from the solar panels or battery bank, over-voltage and under-voltage conditions can be detected, and the system can automatically disconnect or engage protective measures to prevent damage.

For example, if the voltage exceeds the upper threshold, the LM293 comparator can trigger a relay to disconnect the solar inverter from the grid. Similarly, if the voltage drops too low, the comparator can alert the system to switch to backup power.

Power Supply Protection for Industrial Equipment

In industrial settings, power supply protection is crucial to prevent downtime or damage to sensitive machinery. The LM293 can be employed in systems that continuously monitor the supply voltage to industrial equipment. The LM293’s fast response time allows the protection system to react promptly to voltage fluctuations, avoiding potential damage or operational disruptions. The dual comparators of the LM293 allow monitoring of both over-voltage and under-voltage conditions, ensuring that the equipment remains operational within a safe voltage range.

Conclusion

The LM293 voltage comparator is a versatile and reliable component for intelligent power protection circuits. Its ability to monitor voltage levels and provide fast, accurate feedback enables the protection of sensitive electrical systems from damaging over-voltage and under-voltage conditions. By integrating the LM293 into advanced power protection circuits, engineers can create intelligent, responsive systems that ensure the safety and longevity of electrical equipment across a wide range of applications, from solar power systems to industrial machinery. With its low power consumption, high-speed response, and flexibility, the LM293 remains a key component in modern electrical protection systems.
