The Importance of Efficient Power Supply Design and the Role of MPQ8633BGLE-Z

In the modern world of electronics, efficient power supply design has become more critical than ever. With the increasing complexity of devices ranging from mobile phones and laptops to industrial control systems and electric vehicles, ensuring that devices operate efficiently without compromising performance or reliability is a key design challenge. One of the most significant factors contributing to the overall efficiency of power systems is the choice of power Management ICs ( Integrated Circuits ), which regulate voltage levels and ensure optimal energy flow to various components within a device.

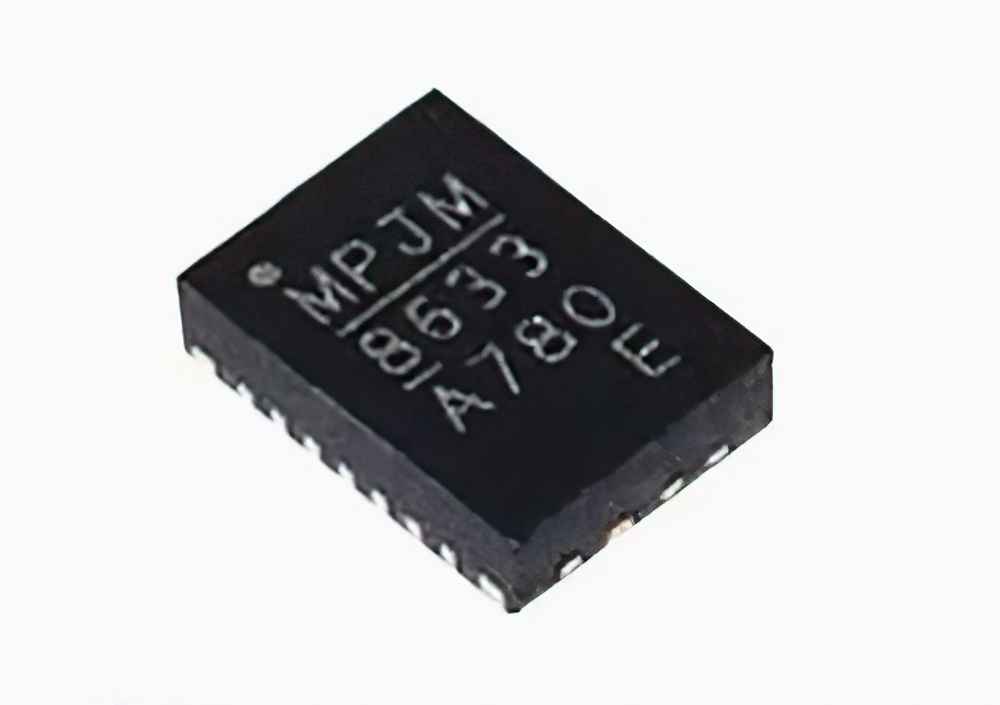

The MPQ8633BGLE-Z is a cutting-edge solution designed by Monolithic Power Systems (MPS) to address this challenge. This integrated step-down voltage regulator is capable of delivering high efficiency while minimizing energy loss. As a critical component in efficient power supply design, it has earned a reputation for enabling devices to operate at peak performance without overheating, thanks to its advanced features and Thermal Management capabilities.

The Role of Power Management ICs

Power management ICs like the MPQ8633BGLE-Z are at the heart of modern electronic designs. They serve as the "brains" of power distribution within systems, ensuring that each part of the device receives the correct voltage and current needed for proper operation. The MPQ8633BGLE-Z, specifically, is a synchronous buck converter designed to step down input voltages efficiently to lower, stable output levels.

The MPQ8633BGLE-Z features an adjustable output voltage range, enabling it to be used in a wide variety of applications. Whether it's powering microcontrollers, sensors, communication chips, or high-performance processors, this device can provide a reliable, high-efficiency power source. At the core of its design is an innovative power architecture that maximizes efficiency and minimizes the amount of wasted energy in the form of heat.

The Need for Thermal Management in Power Supply Systems

While the focus of power supply design often revolves around voltage regulation and efficiency, thermal management is just as critical. Power conversion processes inherently generate heat, which, if not managed properly, can lead to a host of problems such as thermal runaway, reduced component lifespan, or even catastrophic failure. Therefore, effective thermal management is essential for the long-term reliability and performance of electronic systems.

Efficient power conversion through the MPQ8633BGLE-Z can reduce the amount of heat generated, but additional thermal management strategies are necessary to ensure that the regulator operates within safe temperature limits. Overheating can lead to system instability, reduced efficiency, and even damage to components.

Features of the MPQ8633BGLE-Z for Efficient Power Conversion

The MPQ8633BGLE-Z is engineered to provide high efficiency, even under heavy loads, thanks to several key features:

High Efficiency at Light and Heavy Loads: The MPQ8633BGLE-Z operates with efficiency levels greater than 90%, ensuring minimal power loss during voltage conversion. This is critical in applications where maintaining low heat generation is essential.

Wide Input Voltage Range: With an input voltage range from 4.5V to 60V, the MPQ8633BGLE-Z can handle a wide variety of input sources, from batteries to industrial power supplies. This flexibility makes it an ideal choice for a broad range of applications.

Low Output Ripple: The regulator’s output ripple is kept to a minimum, ensuring clean and stable power for sensitive components. This is particularly important for precision electronics that require stable voltage for accurate operation.

Overvoltage, Overcurrent, and Thermal Protection: These built-in protection features ensure that the regulator can operate safely even under fault conditions, preventing damage to both the regulator and the rest of the system.

Understanding the Importance of Thermal Management with MPQ8633BGLE-Z

Thermal management for power regulators such as the MPQ8633BGLE-Z is essential in keeping temperatures within safe operating limits. The efficiency of this step-down regulator ensures that it generates less heat compared to older or less efficient designs, but managing that residual heat is still a key concern.

Optimizing PCB Layout for Thermal Performance

One of the most effective ways to manage heat in power supply designs is through careful PCB layout. The MPQ8633BGLE-Z comes in a compact 16-pin QFN package, which is designed to be thermally efficient, but a well-designed PCB layout can enhance this further. Several key strategies to improve thermal management include:

Using a Large Ground Plane: A solid, uninterrupted ground plane helps dissipate heat more efficiently by providing a pathway for thermal energy to spread out and dissipate.

Thermal Vias: These small holes in the PCB are filled with conductive material and placed strategically around power components to transfer heat away from critical areas.

Copper Traces for Heat Dissipation: Using wider copper traces for power and ground connections not only ensures good electrical performance but also assists in heat dissipation by providing a larger surface area for thermal energy to spread across.

Component Placement: Placing heat-sensitive components away from high-power devices or regulators can prevent excessive heat buildup in sensitive areas of the PCB.

Use of Heat Sinks and Thermal Pads

In situations where heat generation is significant, designers can also integrate heat sinks or thermal pads into the design. Heat sinks attached to the MPQ8633BGLE-Z can significantly increase the surface area for heat dissipation. These are especially useful when the regulator is expected to operate at high power levels for extended periods.

Thermal pads, made of materials with high thermal conductivity, can be placed between the regulator and the PCB or other heat-sensitive components to aid in heat transfer. The MPQ8633BGLE-Z’s compact footprint allows for the easy integration of such solutions without sacrificing space.

Active Cooling Solutions

In more extreme cases where passive cooling (such as heat sinks) is insufficient, active cooling solutions like fans or thermoelectric coolers may be necessary. These systems can ensure that the temperature of the MPQ8633BGLE-Z remains within the desired operating range, even during high-load conditions.

Practical Applications and Advanced Thermal Management Techniques for MPQ8633BGLE-Z

The MPQ8633BGLE-Z is designed to cater to a variety of applications where efficient power delivery and thermal management are paramount. From consumer electronics to industrial applications, this versatile power supply regulator excels in a range of environments. In this section, we’ll explore some of the practical applications of the MPQ8633BGLE-Z, and delve deeper into advanced thermal management techniques that can further optimize system performance.

Applications of MPQ8633BGLE-Z in Consumer Electronics

Consumer electronics such as smartphones, tablets, and wearable devices are often constrained by limited space, which means that every component must be chosen with power efficiency and thermal management in mind. The MPQ8633BGLE-Z is ideal for these types of applications due to its compact size, high efficiency, and robust thermal protection.

In these devices, the regulator can be used to power everything from microprocessors to sensors and communication chips. The MPQ8633BGLE-Z ensures that these components receive a clean and stable power supply, allowing the device to operate efficiently while minimizing power loss and heat generation.

Industrial and Automotive Applications

In industrial environments, power supply systems must operate reliably under varying load conditions, often in harsh environments with high temperatures or vibration. The MPQ8633BGLE-Z’s wide input voltage range and high efficiency make it an excellent choice for industrial applications. Whether it's powering actuators, sensors, or controllers, the regulator ensures stable operation, even in systems with fluctuating power sources.

Similarly, in automotive applications where power conversion is required for sensors, ECUs (electronic control units), and communication systems, the MPQ8633BGLE-Z can offer the required performance while maintaining thermal safety. Given the automotive industry's reliance on energy efficiency and thermal performance, the thermal protection features of the MPQ8633BGLE-Z are particularly beneficial in ensuring long-term, trouble-free operation.

Advanced Thermal Management Techniques

While passive methods such as PCB layout optimization and heat sinks can significantly reduce the temperature of power supply systems, more advanced techniques can further enhance performance. These methods are particularly useful in high-power applications where even small reductions in heat can lead to significant performance improvements.

Dynamic Thermal Management

Dynamic thermal management refers to adjusting the operating conditions of a system in real time based on temperature readings. The MPQ8633BGLE-Z includes built-in thermal protection mechanisms, but additional dynamic management techniques can be applied to optimize system performance. For example, implementing thermal throttling or dynamic voltage scaling can allow the system to reduce power consumption or limit processing speeds when temperatures rise, preventing overheating.

Thermal Simulations and Modeling

Before finalizing the design, engineers often use thermal simulations to model heat generation and dissipation in the system. By using specialized software, they can predict how heat will spread across the PCB and identify hotspots where additional thermal management measures are needed. This can ensure that the MPQ8633BGLE-Z operates within safe temperature limits, even under the most demanding conditions.

Integration with Advanced Cooling Solutions

In applications with extremely high power requirements or stringent thermal constraints, integrating the MPQ8633BGLE-Z with advanced active cooling systems may be necessary. Liquid cooling systems or heat pipes can provide additional heat dissipation, ensuring that the regulator remains cool during long operational hours.

Conclusion: A Step Toward More Efficient, Reliable Systems

The MPQ8633BGLE-Z is a game-changing component in efficient power supply design. By providing high efficiency and robust thermal management features, it enables designers to create systems that operate reliably, efficiently, and with minimal heat generation. Whether for consumer electronics, industrial systems, or automotive applications, the MPQ8633BGLE-Z offers a comprehensive solution for power management that balances performance and thermal safety. By leveraging advanced design techniques and thermal management strategies, engineers can ensure that these systems remain at peak performance even under the most demanding conditions.
