In modern automotive systems, Power supplies are critical for ensuring the performance, safety, and reliability of a wide range of applications. The BTS462T , a robust and highly efficient power Management component, has proven to be an ideal solution for automotive power supply systems. This article explores its application, design considerations, and Thermal Management solutions for ensuring optimal performance in the automotive sector.

BTS462T, automotive power supply, thermal design, Power Management , efficiency, automotive systems, MOSFET, thermal design, automotive electronics, power regulation, heat dissipation, energy efficiency.

The Role of BTS462T in Automotive Power Supplies

Automotive power supplies are the backbone of electrical systems within modern vehicles, powering everything from engine control units to entertainment systems, safety mechanisms, and advanced driver-assistance systems (ADAS). As vehicles become more electrified and complex, the demand for high-performance, efficient, and reliable power management solutions has never been higher. In this context, the BTS462T emerges as a key player in the evolution of automotive power supplies.

1.1. Introduction to BTS462T: A Versatile Power Management IC

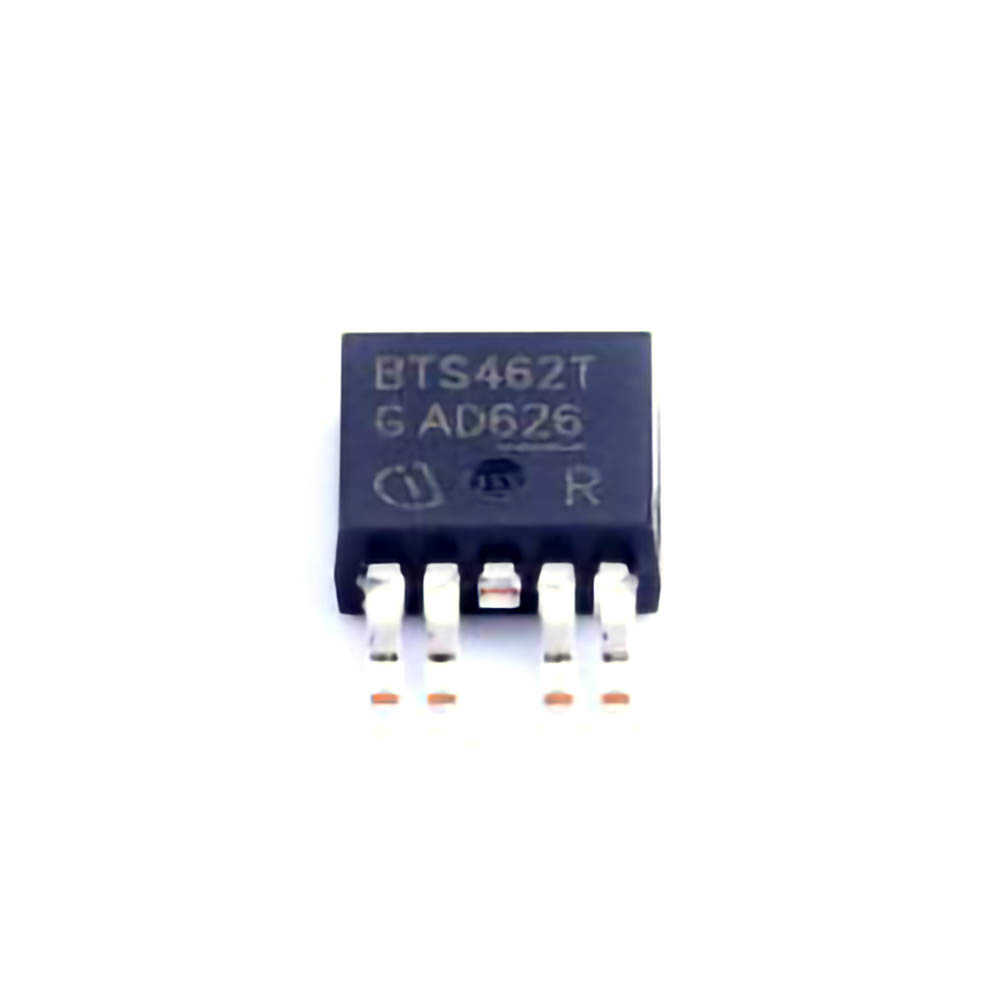

The BTS462T is a high-side MOSFET switch designed specifically for automotive applications. Manufactured by Infineon Technologies, this device is part of the company’s family of SMART high-side switches, which are widely used in automotive power management systems. It is an intelligent power switch that integrates both the power MOSFET and control circuitry, offering efficient and reliable control of power delivery in automotive systems.

The BTS462T is particularly suited for applications requiring high current-handling capability, low power dissipation, and precise thermal management. It features integrated protection mechanisms, such as overtemperature, overvoltage, and short-circuit protection, which make it an ideal solution for automotive environments where reliability and safety are paramount.

1.2. Applications in Automotive Power Supplies

The BTS462T plays an essential role in a wide range of automotive power supplies. Some key applications include:

Power Distribution Units (PDUs): The BTS462T is commonly used in power distribution units, which are responsible for managing and distributing power from the vehicle's main battery to different components and subsystems.

Lighting Systems: Efficient and reliable control of lighting circuits is critical in automotive applications. The BTS462T provides precise control of power to LED lights and other lighting systems while ensuring minimal energy loss and high efficiency.

Control Systems: The BTS462T is often used in the control systems of automotive engines, transmission, and braking mechanisms, where the reliable delivery of power is critical.

Advanced Driver Assistance Systems (ADAS): Modern vehicles are equipped with ADAS, which rely on a multitude of sensors, cameras, and control units. These systems require efficient power regulation to ensure their optimal performance, making the BTS462T an ideal choice.

1.3. Key Features of BTS462T

High Current Capability: The BTS462T can handle significant currents (up to 40A), making it suitable for high-power applications within the automotive domain.

Low RDS(on): The low drain-source resistance (RDS(on)) ensures minimal power loss, improving the overall efficiency of the power supply.

Integrated Protection Features: The device comes with integrated overcurrent, overtemperature, and short-circuit protections, enhancing the robustness and reliability of the automotive system.

Thermal Management Capabilities: The BTS462T is designed to operate effectively in high-temperature environments, which is critical in automotive applications where heat dissipation is a major concern.

Low Standby Current: The low standby current consumption contributes to the overall energy efficiency of the vehicle’s electrical system.

1.4. Thermal Challenges in Automotive Power Supplies

One of the most significant challenges in automotive power supply design is managing heat. Automotive systems, especially in electric vehicles (EVs) and hybrids, are often subjected to harsh conditions, including high temperatures, vibration, and electromagnetic interference. As power electronics components like the BTS462T are responsible for regulating high current loads, they generate heat that must be efficiently managed to avoid component failure or reduced performance.

Effective thermal design in automotive power supplies is essential for ensuring the longevity and reliability of the components. If the power device overheats, it can lead to system shutdowns or, in the worst case, component damage. Therefore, understanding and mitigating thermal issues is crucial in ensuring the operational stability of systems relying on components like the BTS462T.

1.5. Importance of Thermal Management in Power Supply Design

The integration of BTS462T into automotive power supply systems requires careful consideration of thermal management. A key factor influencing thermal performance is the power dissipation of the device. The BTS462T, being a MOSFET switch, has inherent resistance to current flow (RDS(on)), which generates heat when current passes through it. The power dissipation (Pd) is directly proportional to the current and RDS(on) value:

[

Pd = I_{load}^2 \times RDS(on)

]

Thus, high currents flowing through the device can lead to significant power loss in the form of heat, and efficient thermal management strategies must be implemented to avoid thermal runaway or damage to the device.

Effective Thermal Design Strategies for BTS462T in Automotive Applications

Thermal management is a critical factor in the design and application of power components in automotive systems. When designing an automotive power supply using the BTS462T, it is crucial to implement effective strategies to dissipate heat and maintain optimal operating conditions for the device. In this section, we explore several strategies for managing the thermal performance of the BTS462T in automotive power supplies.

2.1. The Role of Heat Sinks and Cooling Solutions

In many automotive applications, heat sinks and cooling solutions are essential to ensure that power components operate within safe temperature limits. Heat sinks are typically used to absorb and dissipate the heat generated by the BTS462T, and they work by increasing the surface area available for heat dissipation.

For automotive applications, heat sinks must be designed to withstand extreme temperatures and vibrations. They should be constructed from materials with high thermal conductivity, such as aluminum, to efficiently transfer heat away from the device. Additionally, heat sinks should be designed to maximize airflow, which helps enhance cooling.

Active cooling solutions, such as forced air cooling or liquid cooling, may also be used in high-power applications to further improve heat dissipation. However, these solutions tend to be more complex and may not be necessary for all applications. Passive cooling strategies are often sufficient for many automotive power supplies using the BTS462T.

2.2. PCB Design and Thermal Considerations

The PCB design plays a significant role in managing the thermal performance of power components like the BTS462T. When designing a PCB for a power supply using the BTS462T, careful attention must be paid to factors such as trace width, copper thickness, and the placement of the component on the board.

Trace Width and Copper Thickness: The traces carrying high current should be wide enough to minimize resistance and prevent excessive heat generation. The BTS462T has high current-handling capabilities, and the PCB traces need to be designed to accommodate these currents without generating excessive heat.

Thermal Via Design: Thermal vias are used to transfer heat from the component to the other side of the PCB or to a heat sink. Properly placing and designing thermal vias can significantly enhance heat dissipation and help maintain the temperature of the BTS462T within the desired range.

Component Placement: The placement of the BTS462T on the PCB is also crucial for thermal management. It should be positioned in an area with good airflow and, ideally, close to a heat sink or other cooling solution.

2.3. Using the BTS462T’s Integrated Features for Thermal Protection

The BTS462T comes with several integrated protection features that help mitigate thermal risks. These include:

Overtemperature Protection: The device automatically shuts down or reduces power output when it detects that the temperature exceeds safe operating limits. This feature helps protect the device from thermal damage and ensures that the system continues to operate safely.

Current Limiting: In the event of a short circuit or an overcurrent condition, the BTS462T can limit the amount of current flowing through it, preventing excessive heat buildup and avoiding thermal failure.

By utilizing these integrated protections, automotive power supply designers can minimize the risk of thermal failure and ensure the long-term reliability of the system.

2.4. Thermal Simulation and Testing

Before deploying the BTS462T in automotive power supply systems, it is essential to perform thermal simulations and thermal testing. Simulation tools can model the thermal behavior of the device under various conditions, helping to predict temperature rise and identify potential hot spots. This allows designers to make informed decisions about heat dissipation methods, PCB layout, and cooling solutions.

Thermal testing in real-world conditions is also critical to verify the performance of the design. By subjecting the system to actual operating conditions, designers can ensure that the power supply remains within safe temperature limits and operates efficiently under different load and environmental conditions.

2.5. Conclusion: Ensuring Reliable and Efficient Automotive Power Supplies

The BTS462T is a powerful and versatile solution for automotive power supplies, offering high efficiency, integrated protection, and excellent thermal performance. However, to fully leverage its capabilities, careful attention to thermal design and power dissipation is required. By implementing strategies such as proper PCB design, heat sink selection, and utilizing the integrated protection features, designers can ensure that the BTS462T operates within safe thermal limits, enhancing the reliability and longevity of automotive power systems.

As automotive technology continues to evolve, the demand for efficient and reliable power management systems will only increase. The BTS462T stands as a critical component in meeting these challenges, providing solutions that ensure the smooth operation of modern vehicles' electrical systems, while minimizing power loss and maximizing energy efficiency.
