Introduction to RTL8211FS-CG and Its Role in High-Speed Ethernet Networks

In today’s digital world, the demand for faster and more reliable data transmission is ever-growing. As businesses and individuals generate and consume vast amounts of data, the need for efficient and high-performance networking solutions has never been greater. One of the critical components driving this evolution in high-speed networking is the Ethernet PHY (Physical Layer) module . Among the popular choices for Ethernet PHY Modules , the RTL8211FS-CG stands out as a highly efficient and optimized solution for high-speed Ethernet systems.

What is RTL8211FS-CG?

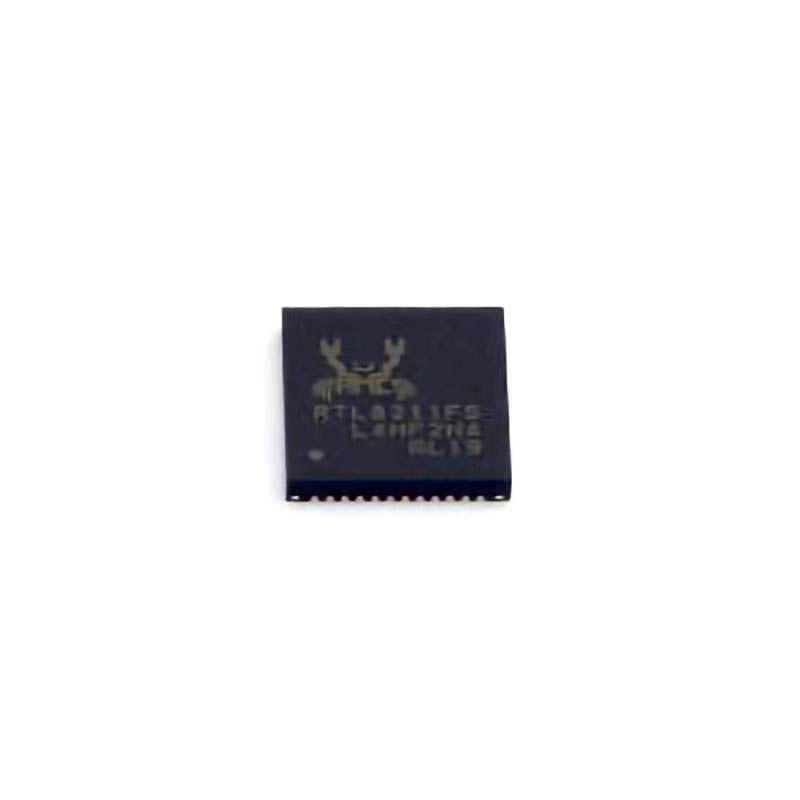

The RTL8211FS-CG is a low- Power , high-performance Ethernet PHY (Physical Layer) chip designed by Realtek S EMI conductor. It is specifically designed to meet the demands of high-speed, Gigabit Ethernet (1GbE) and is commonly used in various applications, including network switches, routers, industrial networking equipment, and home gateways. The RTL8211FS-CG operates at speeds of up to 1 Gbps (Gigabits per second) and supports both full-duplex and half-duplex communication, making it ideal for modern Ethernet networks where speed and reliability are paramount.

This chip integrates a number of advanced features that make it an essential component for creating robust and high-performance Ethernet systems. One of the standout features of the RTL8211FS-CG is its auto-negotiation capability, which allows the PHY module to automatically detect the best communication settings between devices. This ensures compatibility with various network configurations, making it highly versatile and easy to integrate into a wide range of systems.

Key Features of the RTL8211FS-CG

The RTL8211FS-CG offers several features that make it well-suited for high-speed Ethernet applications:

Low Power Consumption: The chip is designed for low power operation, which is crucial in modern networking applications where power efficiency is a top priority. It achieves this without compromising performance, ensuring that it is well-suited for both consumer and industrial applications.

Support for Gigabit Ethernet: The RTL8211FS-CG supports 10/100/1000 Mbps speeds, allowing it to easily integrate into high-speed Ethernet networks while providing backward compatibility for older devices.

Advanced Auto-Negotiation: The auto-negotiation function ensures that the module can detect and adjust to the optimal speed and duplex mode, ensuring efficient communication between networked devices.

Reduced Electromagnetic Interference (EMI): The RTL8211FS-CG features enhanced EMI performance, which helps minimize signal interference in dense or noisy environments, leading to more reliable data transmission.

Robust Error Correction: The chip supports advanced error detection and correction techniques, ensuring that data transmission is both accurate and reliable.

These features make the RTL8211FS-CG an excellent choice for applications that require high-speed data transfer, such as in data centers, industrial automation systems, and high-performance computing environments.

Challenges in High-Speed Ethernet Design

While the RTL8211FS-CG provides numerous benefits, integrating it into a high-speed Ethernet network requires careful design considerations. High-speed Ethernet systems are prone to several challenges, including signal degradation, interference, and power consumption. These challenges can degrade network performance and reliability if not properly addressed. As a result, optimizing the performance of the RTL8211FS-CG in a high-speed Ethernet module is a crucial step in the design process.

In the next section, we will explore the optimization techniques for enhancing the performance of the RTL8211FS-CG in high-speed Ethernet applications.

Optimization Techniques for RTL8211FS-CG in High-Speed Ethernet Modules

Once the RTL8211FS-CG is selected for an Ethernet system, optimizing its performance becomes essential to ensure it delivers the best possible results. High-speed Ethernet networks demand precise design and configuration to minimize errors and maximize throughput. Here, we discuss several strategies for optimizing the RTL8211FS-CG in a high-speed Ethernet PHY module.

1. PCB Design and Layout Optimization

The Printed Circuit Board (PCB) design plays a pivotal role in the performance of high-speed Ethernet systems. When designing the PCB for the RTL8211FS-CG, several factors need to be taken into account to ensure the module operates efficiently.

Signal Integrity: High-speed Ethernet communication is highly sensitive to signal integrity issues, such as signal reflection, crosstalk, and impedance mismatch. To address these issues, the PCB layout should include controlled impedance traces to match the differential impedance of the Ethernet signals. This will help minimize signal loss and maintain the integrity of data transmission.

Minimizing Crosstalk: High-speed signals can interfere with each other if the PCB traces are not properly isolated. Careful routing of signal traces, adequate grounding, and the use of shielded traces can help reduce crosstalk and ensure that signals remain clear and stable.

Via and Trace Optimization: Minimizing the use of vias and ensuring that trace lengths are as short as possible can help reduce signal attenuation. This is particularly important at Gigabit Ethernet speeds, where even small amounts of signal loss can significantly impact performance.

2. Power Supply and Grounding Considerations

Power supply noise and grounding issues can significantly affect the performance of the RTL8211FS-CG. Ensuring stable power delivery to the PHY module is essential for maintaining its performance.

Decoupling capacitor s: The use of decoupling capacitors close to the power supply pins of the RTL8211FS-CG helps filter out high-frequency noise and smoothes power delivery. Proper placement and selection of these capacitors are crucial to ensuring stable operation.

Solid Ground Plane: A continuous and low-impedance ground plane is essential for reducing noise and minimizing voltage fluctuations. It is important to ensure that the ground plane is uninterrupted and connected to all ground pins of the RTL8211FS-CG to maintain signal integrity.

Power Management : Proper power sequencing and filtering are critical to prevent power spikes or drops from affecting the chip’s performance. High-speed Ethernet modules like the RTL8211FS-CG are sensitive to power fluctuations, which can lead to instability or errors in data transmission.

3. Optimizing Signal transceiver s

The RTL8211FS-CG features a high-speed transceiver, which is responsible for converting data between the digital domain and the analog Ethernet signals. To optimize the performance of the transceiver, several techniques can be applied:

Pre-emphasis and Equalization: To combat signal degradation due to transmission over longer distances or in electrically noisy environments, the transceiver can apply pre-emphasis to boost higher frequencies in the signal. Additionally, equalization can be used to compensate for losses and distortions in the signal, improving the quality of data transmission.

Link Speed and Auto-Negotiation Tuning: Ensuring that the link speed and duplex settings are optimized for the specific application is crucial. While the RTL8211FS-CG supports automatic speed negotiation, manual tuning may be necessary to match the needs of the specific network environment, especially in cases of mixed-speed network devices.

4. Firmware and Software Tuning

Finally, optimizing the firmware and software that controls the RTL8211FS-CG can help unlock its full potential in high-speed Ethernet systems.

Auto-Negotiation Optimization: While the RTL8211FS-CG supports automatic negotiation, sometimes manual configuration of link parameters (such as speed, duplex mode, and flow control) can provide better performance in specific environments.

Error Detection and Correction Algorithms: Enabling advanced error detection and correction algorithms in the software layer can help ensure the integrity of data transmission. These algorithms can detect and correct transmission errors, enhancing the reliability of the network.

5. Testing and Monitoring

Finally, continuous testing and monitoring are essential for maintaining optimal performance in high-speed Ethernet systems. Implementing diagnostic tools that can monitor the signal quality, detect errors, and provide real-time performance metrics can help quickly identify and resolve issues before they impact the network.

Conclusion

The RTL8211FS-CG is a powerful and versatile Ethernet PHY module designed to meet the demands of high-speed networking. By carefully considering design factors such as PCB layout, power delivery, signal integrity, and firmware optimization, engineers can significantly enhance the performance of systems utilizing this chip. In an era where data transfer speeds are constantly increasing, maximizing the potential of Ethernet PHY modules like the RTL8211FS-CG is critical to ensuring efficient, reliable, and high-performance network communication.

By applying the optimization techniques discussed in this article, developers can ensure that their high-speed Ethernet systems run smoothly, reliably, and with minimal interference, paving the way for more advanced, high-performance networking solutions.

End of Part 2
